0ZRC Series

Resettable Fuses - PPTC

Manufacturer: Bel Fuse Inc.

Catalog

Resettable Fuses - PPTC

Catalog

Resettable Fuses - PPTC

Part	Package / Case	Voltage - Max [Max]	Grade	Current - Hold (Ih) (Max) [Max]	Type	Resistance - Initial (Ri) (Min) [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Lead Spacing	Lead Spacing	Time to Trip	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
Bel Fuse Inc. 0ZRC0040FF2E	Disc Radial	90 V	Automotive	400 mA	Polymeric	550 mOhms	13.5 mm	0.532 "	1.29 Ohms	0.201 in	5.1 mm	3.8 s	7.6 mm	0.122 in	3.1 mm	0.299 "	40 A	800 mA	85 °C	-40 C	Through Hole	AEC-Q200
Bel Fuse Inc. 0ZRC0300FF1A	Disc Radial	90 V	Automotive	3 A	Polymeric	40 mOhms			100 mOhms			19.8 s	24.9 mm	0.122 in	3.1 mm	0.98 "	40 A	6 A	85 °C	-40 C	Through Hole	AEC-Q200	30 mm	1.181 "

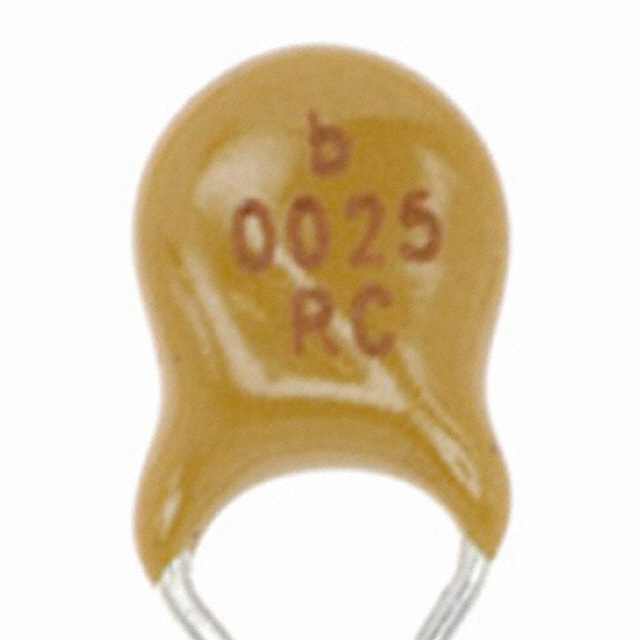

Bel Fuse Inc. 0ZRC0025FF1E	Disc Radial	90 V	Automotive	250 mA	Polymeric	1.25 Ohms		0.5 in	3 Ohms	0.201 in	5.1 mm	2.5 s	7.4 mm	0.122 in	3.1 mm	0.291 in	40 A	500 mA	85 °C	-40 C	Through Hole	AEC-Q200			12.7 mm
Bel Fuse Inc. 0ZRC0020FF2E	Disc Radial	90 V	Automotive	200 mA	Polymeric	1.83 Ohms		0.5 in	4.4 Ohms	0.201 in	5.1 mm	2.2 s	7.4 mm	0.122 in	3.1 mm	0.291 in	40 A	400 mA	85 °C	-40 C	Through Hole	AEC-Q200			12.7 mm
Bel Fuse Inc. 0ZRC0135FF2B	Disc Radial	90 V	Automotive	1.35 A	Polymeric	0.12 Ohms		0.772 in	300 mOhms	0.201 in	5.1 mm	9.6 s	0.571 in		0.122 in		40 A	2.7 A	85 °C	-40 C	Through Hole	AEC-Q200			19.6 mm	14.5 mm	3.1 mm
Bel Fuse Inc. 0ZRC0055FF2E	Disc Radial	90 V	Automotive	550 mA	Polymeric	400 mOhms		0.551 in	1.5 Ohms	0.201 in	5.1 mm	10 s	9.7 mm	0.122 in	3.1 mm	0.382 "	40 A	1.2 A	85 °C	-40 C	Through Hole	AEC-Q200			14 mm
