PPTC301 Series

Catalog

CONN HDR 30POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Termination	Number of Rows	Fastening Type	Voltage Rating	Number of Positions	Connector Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type

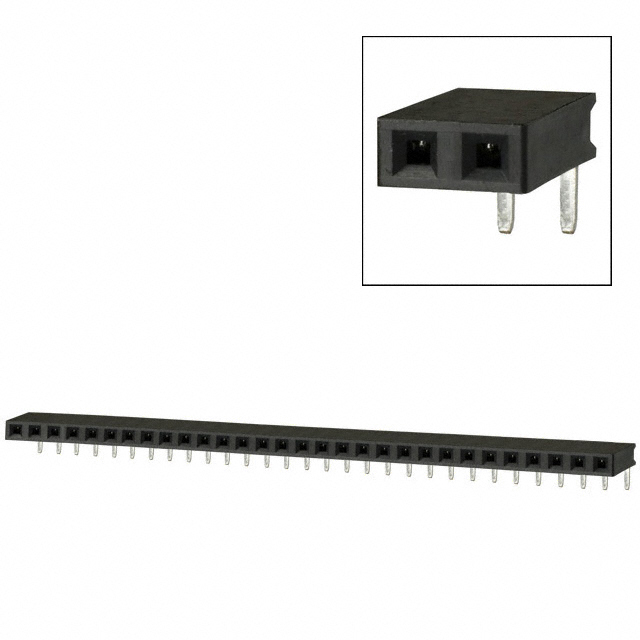

Sullins Connector Solutions PPTC301LGBN	Phosphor Bronze	Square	Polyester	Solder	1	Push-Pull	250 V	30	Header	0.124 in	3.15 mm	0.1 "	2.54 mm	UL94 V-0	All	3 A	Tin	0.1 in	2.54 mm	Female Socket	Black	-40 C	105 ░C	Right Angle Through Hole

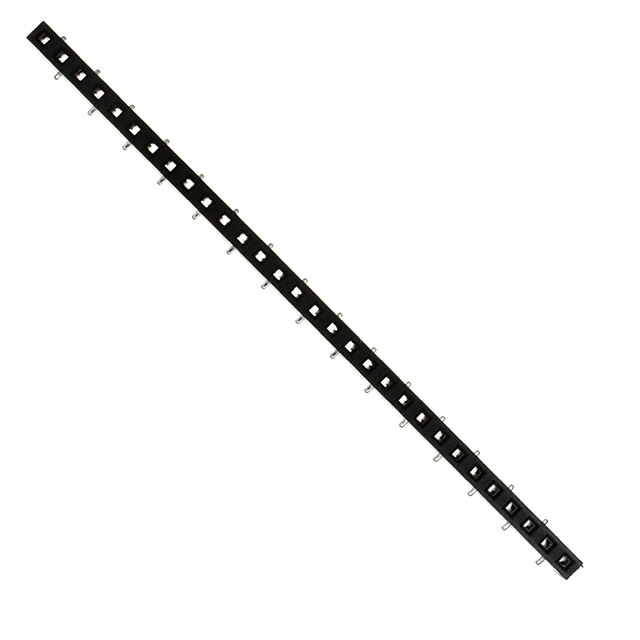

Sullins Connector Solutions PPTC301KFXC	Phosphor Bronze	Square	Polyester	Solder	1	Push-Pull	250 V	30	Header Top or Bottom Entry			0.1 "	2.54 mm	UL94 V-0	All	3 A	Tin	0.28 in	7.1 mm	Female Socket	Black	-40 C	105 ░C	Surface Mount
