DCPDB0 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

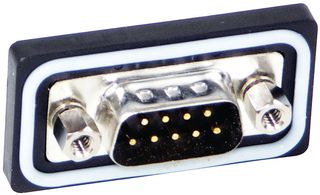

CONN D-SUB SKT 9 POS SOLDER CUP ST PANEL MOUNT 9 TERMINAL 1 PORT
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Ingress Protection | Connector Type | Contact Finish | Contact Type | Flange Feature | Number of Positions | Connector Style | Material Flammability Rating | Number of Rows [custom] | Mounting Type | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Thermoplastic | Copper Alloy | -55 C | 85 °C | 26 AWG | 22 AWG | Black | 1 | DE E | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Gold | Signal | Female Screwlock Mating Side | 9 | D-Sub | UL94 V-0 | 2 | Panel Mount | 5 A | Gasket |
 SWITCHCRAFT/CONXALL | Thermoplastic | Copper Alloy | -55 C | 85 °C | 26 AWG | 22 AWG | Black | 1 | DE E | IP67 - Dust Tight Waterproof | Plug Male Pins | Gold | Signal | Female Screwlock Mating Side | 9 | D-Sub | UL94 V-0 | 2 | Panel Mount | 5 A | Gasket |
