1002-002 Series
Manufacturer: CNC Tech
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
USB 2.0 SOCKET W/KINK SMD TYPE 3
| Part | Mounting Type | Connector Type | Mounting Feature | Current Rating | Voltage - Rated | Gender | Operating Temperature (Min) | Operating Temperature (Max) | Shielding | Number of Ports | Termination | Number of Contacts | Specifications | Shell/Shielding Material | Insulation Color | Material Flammability Rating | Contact Finish | Features | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

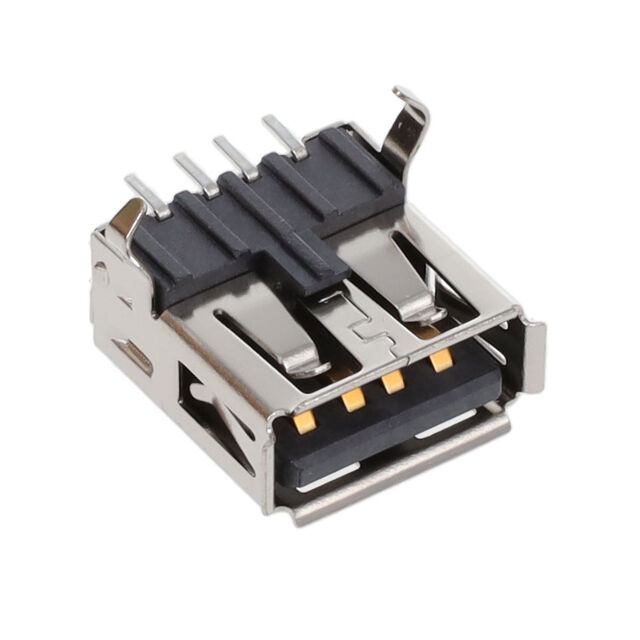

 CNC Tech | Right Angle Surface Mount | USB-A (USB TYPE-A) | Horizontal | 1.5 A | 30 VAC | Receptacle | -40 °C | 105 °C | Unshielded | 1 | Solder | 4 | USB 2.0 | Brass | Black | UL94 V-0 | Gold | ||

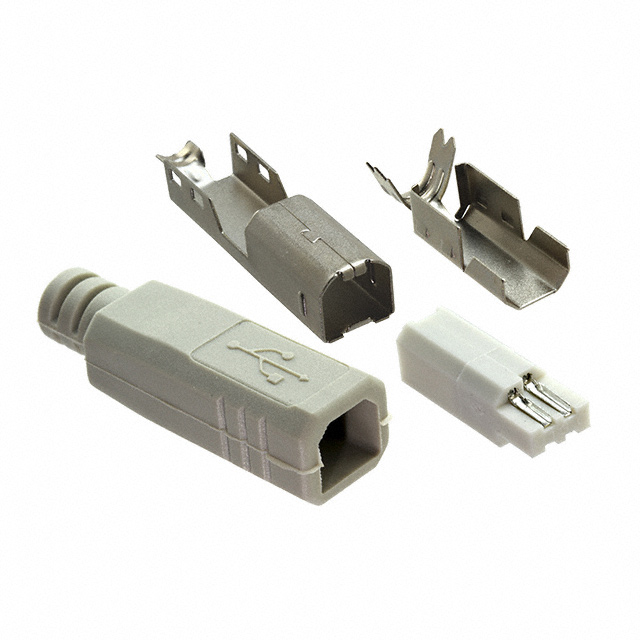

 CNC Tech | Free Hanging (In-Line) | USB-B (USB TYPE-B) | Plug | Shielded | 1 | Solder | 4 | USB 2.0 | White | ||||||||||
 CNC Tech | Right Angle Surface Mount | USB-A (USB TYPE-A) | Horizontal | 1.5 A | 30 VAC | Receptacle | -55 °C | 50 °C | 1 | Solder | 4 | USB 2.0 | Brass | UL94 V-0 | Gold | Board Lock | 1500 cycles |
