TMS3T Series

Catalog

TOGGLE SWITCHES VERT R/A PC TH GOLD SP ON-OFF-ON TS

Part	Switch Function	Voltage Rating - AC	Termination Style	Actuator Type	Illumination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Features	Voltage Rating - DC	Bushing Thread	Circuit	Mounting Type	Panel Cutout Dimensions [diameter]

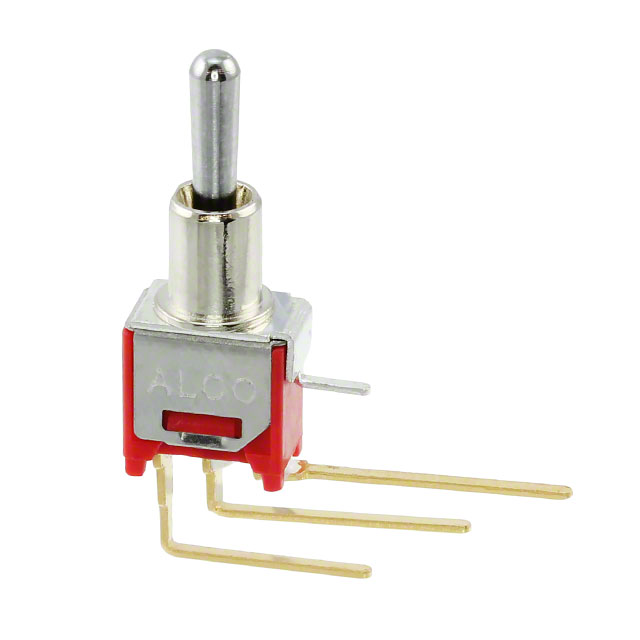

TE Connectivity AMP Connectors TMS3T5B2M7RE	On-Off-On	20 V	PC Pin	Standard Round	Non-Illuminated	0.4 VA	85 °C	-30 ░C	7.48 mm	Process Sealed	20 V	Unthreaded	SPDT	Right Angle Through Hole Vertical
TE Connectivity AMP Connectors TMS3T3B1M2RE	On-Off-On	20 V	PC Pin	Standard Round	Non-Illuminated	0.4 VA	85 °C	-30 ░C		Process Sealed	20 V	10-48	SPDT	Panel Mount	4.95 mm

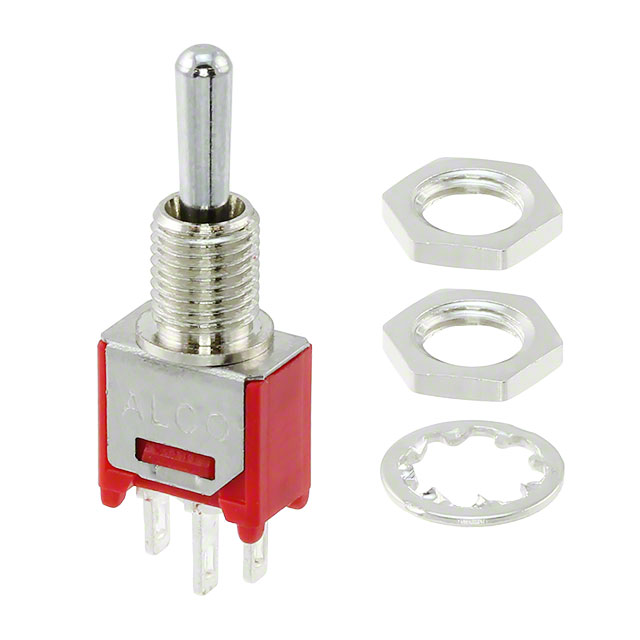

TE Connectivity AMP Connectors TMS3T3B1M1QE	On-Off-On	120 V	Solder Lug	Standard Round	Non-Illuminated	3 A	85 °C	-30 ░C		Process Sealed	28 V	10-48	SPDT	Panel Mount	4.95 mm
TE Connectivity AMP Connectors TMS3T5B2M2RE	On-Off-On	20 V	PC Pin	Standard Round	Non-Illuminated	0.4 VA	85 °C	-30 ░C	7.62 mm	Process Sealed	20 V	Unthreaded	SPDT	Through Hole
