MS3108A20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PLUG

Part	Color	Primary Material	Features	Termination	Fastening Type	Contact Material	Number of Positions	Orientation	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Backshell Material	Plating	Connector Type	Qualification	Insert Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Finish	Shielding	Contact Finish - Mating	Mounting Type	Voltage Rating (DC)	Voltage Rating (AC)	Shell Size - Insert Width	Shell Size - Insert Length	Ingress Protection	Grade	Current Rating
Amphenol Aerospace Operations MS3108A20-12P
Amphenol Aerospace Operations MS3108A20-29SW	Olive Drab	Metal	Coupling Nut	Solder Cup	Threaded	Copper Alloy	17	W	Marine Military	125 °C	-55 °C	Aluminum Alloy	Aluminum Alloy	Olive Drab Chromate over Cadmium	Female Sockets Plug	MIL-5015	Neoprene	20	29	Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle
Amphenol Aerospace Operations MS3108A20-4P	Olive Drab	Metal		Solder Cup	Threaded	Copper Alloy	4	N (Normal)	Marine Military	125 °C	-55 °C	Aluminum Alloy			Male Pins Plug	MIL-DTL-5015	Neoprene			Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle	1250 VDC	900 VAC	4 mm	20 mm	Environment Resistant	Military	23 A
Amphenol Aerospace Operations MS3108A20-4S	Olive Drab	Metal		Solder Cup	Threaded	Copper Alloy	4	N (Normal)	Marine Military	125 °C	-55 °C	Aluminum Alloy			Female Sockets Plug	MIL-DTL-5015	Neoprene			Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle	1250 VDC	900 VAC	4 mm	20 mm	Environment Resistant	Military	23 A

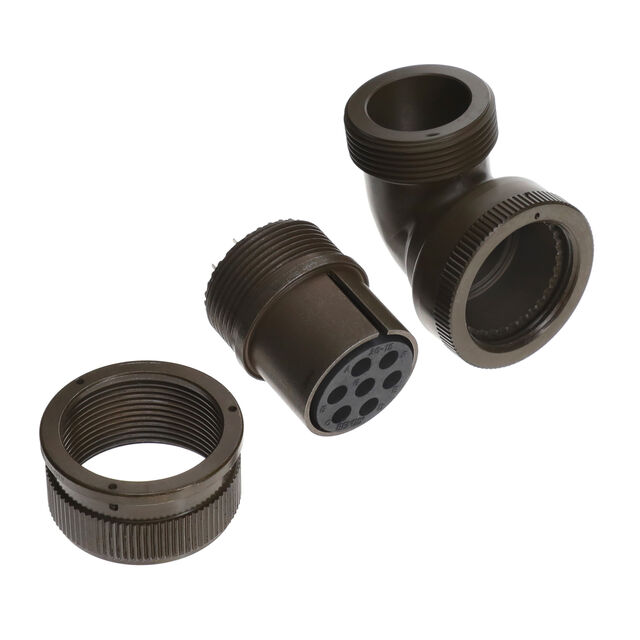

Amphenol Aerospace Operations MS3108A20-15S	Olive Drab	Metal		Solder Cup	Threaded	Copper Alloy	7	N (Normal)	Marine Military	125 °C	-55 °C	Aluminum Alloy			Female Sockets Plug	MIL-DTL-5015	Neoprene			Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle			15 mm	20 mm	Environment Resistant	Military	22 A
Amphenol Aerospace Operations MS3108A20-27S	Olive Drab	Metal		Solder Cup	Threaded	Copper Alloy	14	N (Normal)	Marine Military	125 °C	-55 °C	Aluminum Alloy			Female Sockets Plug	MIL-DTL-5015	Neoprene	20	27	Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle					Environment Resistant	Military	13 A
Amphenol Aerospace Operations MS3108A20-29P	Olive Drab	Metal	Coupling Nut	Solder Cup	Threaded	Copper Alloy	17	N (Normal)	Marine Military	125 °C	-55 °C	Aluminum Alloy			Male Pins Plug	MIL-DTL-5015	Neoprene	20	29	Cadmium Olive Drab Chromate	Unshielded	Silver	Free Hanging (In-Line) Right Angle					Environment Resistant	Military	13 A
