8501X Series

Catalog

INDUSTRIAL RELAYS RELAY 600VAC 10A NEMA

Part	Relay Type	Switching Voltage [Max]	Contact Rating (Current)	Approval Agency	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Operate Time	Mounting Type	Must Operate Voltage	Load - Max Switching	Contact Form	Termination Style	Release Time	Delay Time [Min]	Delay Time [Max]	Timing Adjustment Method	Function	Circuit	Timing Initiate Method	Contact Rating @ Voltage	Accessory Type	For Use With/Related Products

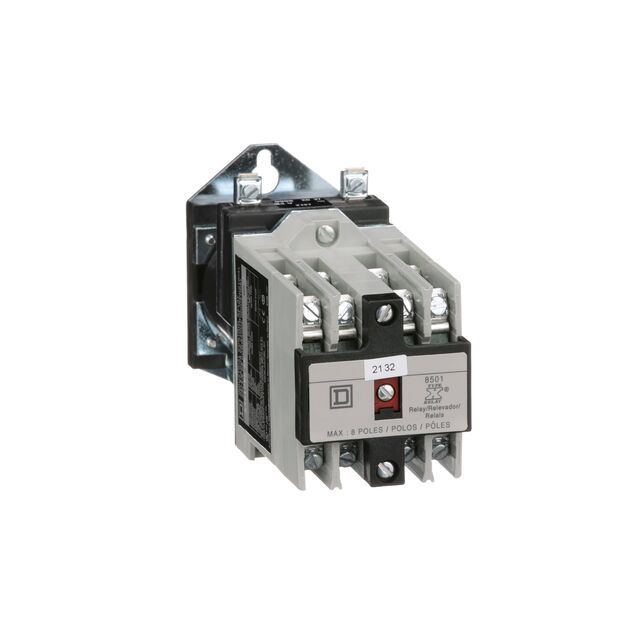

SCHNEIDER ELECTRIC 8501XDO80V53	General Purpose	600 VAC	10 A	CSA UL	24 VDC	71 °C	-40 C	Non Latching	37 ms	Chassis Mount	19.2 VDC	6000 VA	8PST-NO (8 Form A)	Screw Terminal	21 ms
SCHNEIDER ELECTRIC 8501XUDO40V63Y414	General Purpose	600 VAC	10 A	CE CSA UL	125 VDC	71 °C	-40 C	Non Latching	37 ms	Chassis Mount		6000 VA	4PST-NO (4 Form A)	Screw Terminal	21 ms

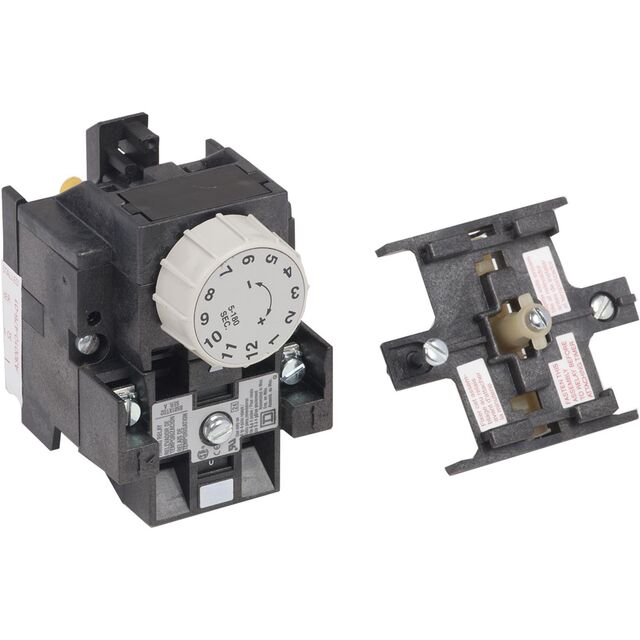

SCHNEIDER ELECTRIC 8501XTE2	Mechanical Relay									Chassis Mount				Screw Terminal		5 Sec	180 Sec	Hand Dial	On-Delay	DPST-NO/NC (1 Form A and B)	Input Voltage	10 A 600 VAC
SCHNEIDER ELECTRIC 8501XO40XTD1V02	General Purpose	600 VAC	10 A	CSA UL	120 VAC	71 °C	-40 C	Non Latching	15 ms	Socketable	102 VAC	6000 VA	4PST-NO (4 Form A)	Screw Terminal	16 ms
SCHNEIDER ELECTRIC 8501XO1200V02	General Purpose	600 VAC	10 A	CSA UL	120 VAC	71 °C	-40 C	Non Latching	15 ms	Socketable	102 VAC	6000 VA	12PST-NO (12 Form A)	Screw Terminal	16 ms
SCHNEIDER ELECTRIC 8501XM8																							Mounting Rail	Square D 8501X
SCHNEIDER ELECTRIC 8501XDO20V53	General Purpose	600 VAC	10 A	CSA UL	24 VDC	71 °C	-40 C	Non Latching	37 ms	Chassis Mount	19.2 VDC	6000 VA	DPST-NO (2 Form A)	Screw Terminal	21 ms
