AVO200 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, EIGHTH BRICK, 200 W, 1 OUTPUT, 12 V

Part	Voltage - Input (Min) [Min]	Voltage - Output 1	Number of Outputs	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Applications	Supplier Device Package
ARTESYN / Advanced Energy AVO200-48S12B-6L	36 V	12 V	1	200 Watts	Isolated Module	85 °C	-40 C	Through Hole	Adjustable Output Baseplate	Eighth Brick	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	94 %	1.5 kV	75 V	16.7 A	ITE (Commercial)

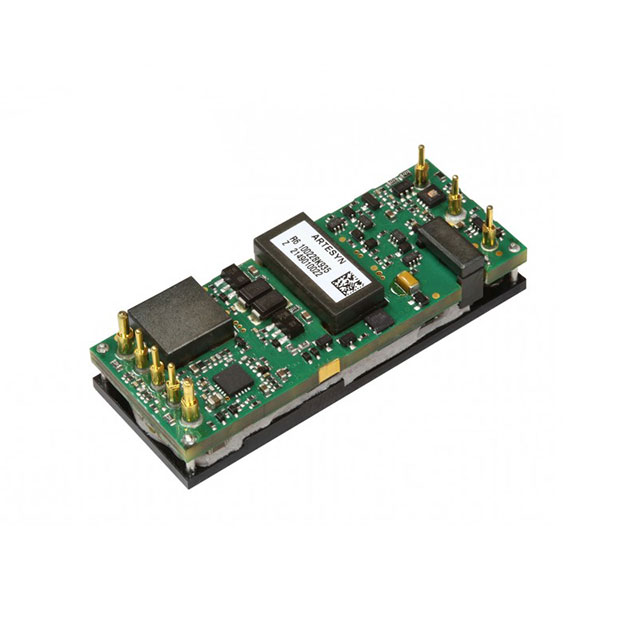

ARTESYN / Advanced Energy AVO200-48S05B-6L	36 V	5 V	1	200 Watts	Isolated Module	85 °C	-40 C	Through Hole	Baseplate	Eighth Brick	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	94.5 %	1.5 kV	75 V	40 A	ITE (Commercial)	Eighth Brick

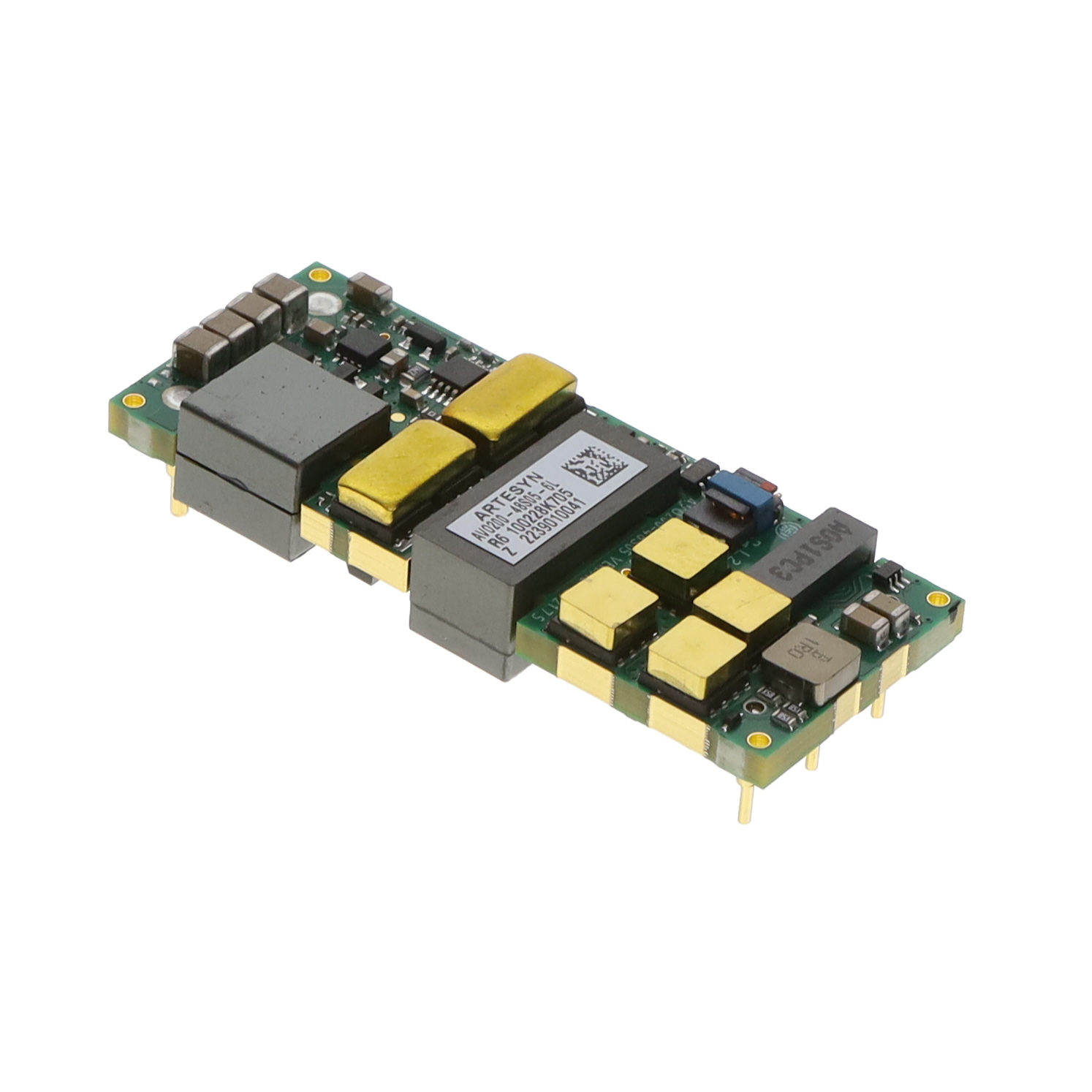

ARTESYN / Advanced Energy AVO200-48S05-6L	36 V	5 V	1	200 Watts	Isolated Module	85 °C	-40 C	Through Hole	Adjustable Output Remote On/Off Remote Sense	Eighth Brick	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	94.5 %	1.5 kV	75 V	40 A	ITE (Commercial)	Eighth Brick
