3SE5423 Series

Manufacturer: Siemens

Catalog

LIMIT SWITCHES LIM SW, ROLLER CRANK, 1NO+1NC,SNAP,M12-5

Part	Voltage Rating - DC	Mounting Type	Switch Function	Circuit	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Electrical Life	Actuator Type	Termination Style	Ingress Protection	Operating Force

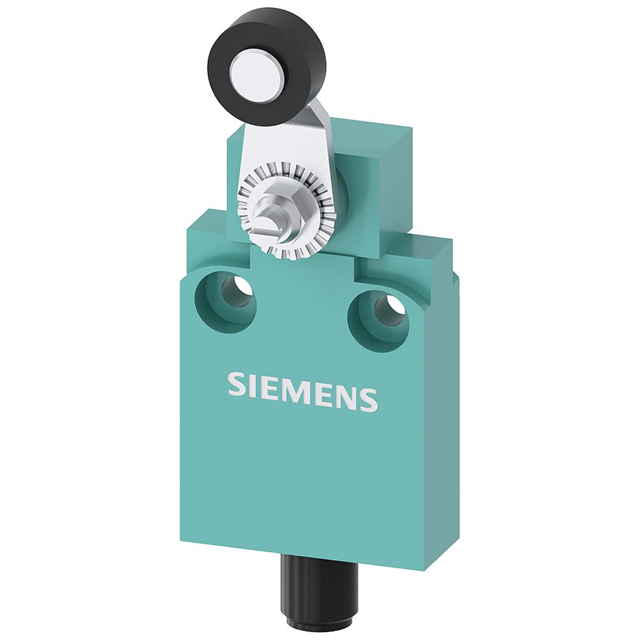

Siemens 3SE54230CN201EB1	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Connector	IP67 - Dust Tight Waterproof

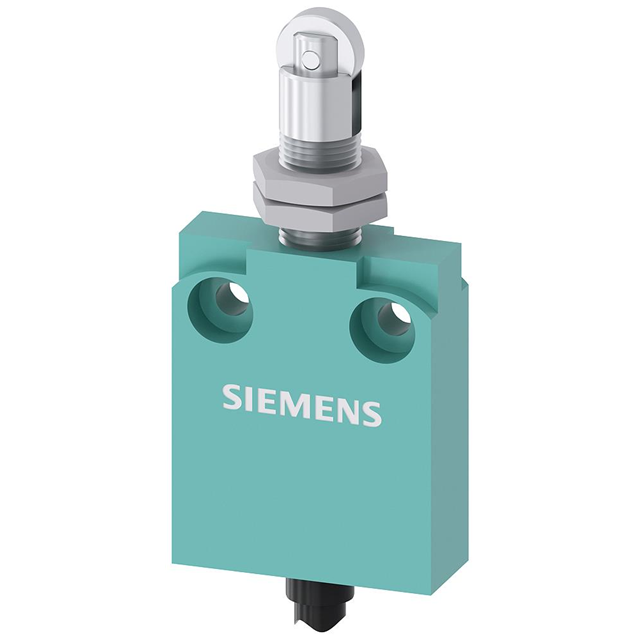

Siemens 3SE54230CD211EA2	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Cable Leads	IP67 - Dust Tight Waterproof	1530 gf

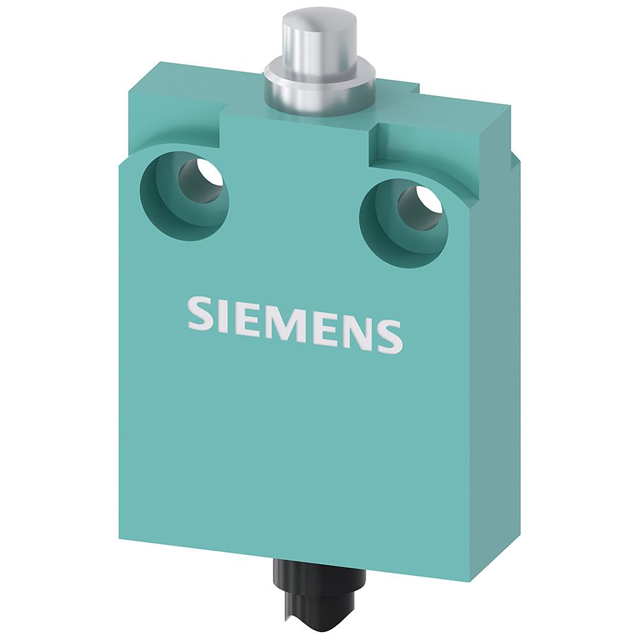

Siemens 3SE54230CC201EA2	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	IP67 - Dust Tight Waterproof	2039 gf

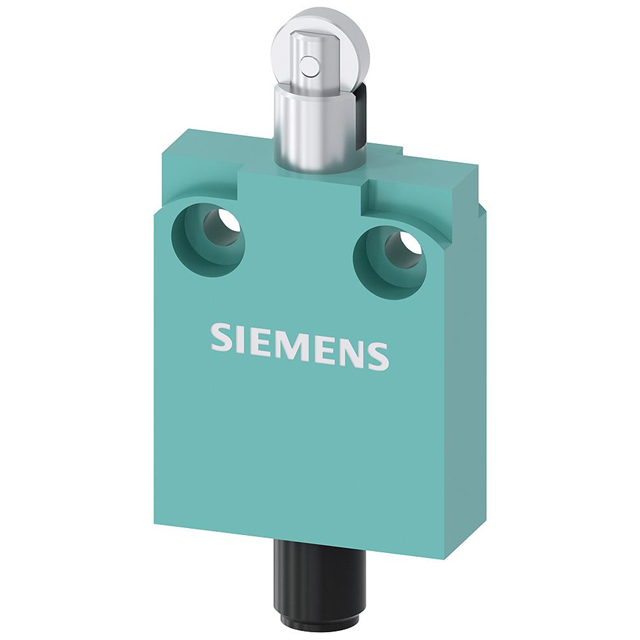

Siemens 3SE54230CD201EB1	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Plunger	Connector	IP67 - Dust Tight Waterproof	1530 gf

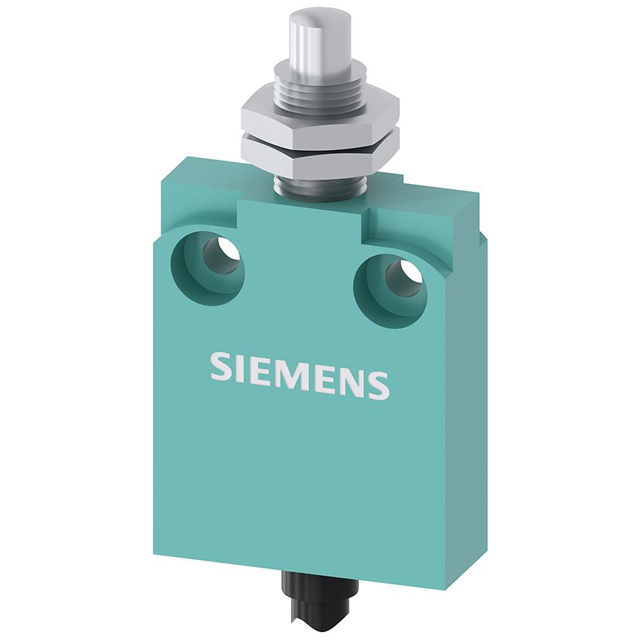

Siemens 3SE54230CC211EA2	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Cable Leads	IP67 - Dust Tight Waterproof	2039 gf

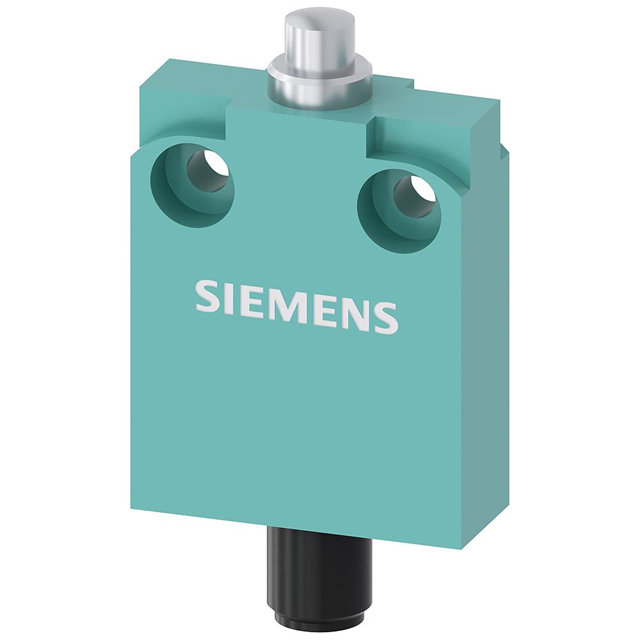

Siemens 3SE54230CC201EB1	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	10000000 Cycles	100000 Cycles	Round (Pin Plunger)	Connector	IP67 - Dust Tight Waterproof	2039 gf

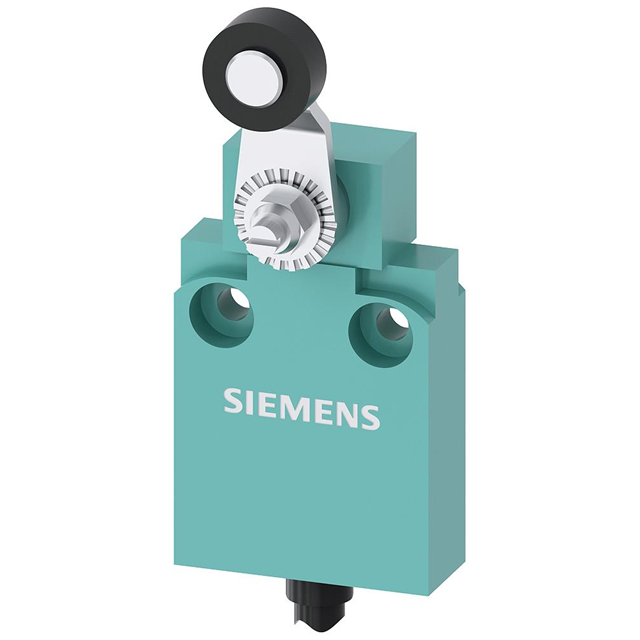

Siemens 3SE54230CN201EA2	125 VDC	Chassis Mount	Off-Mom On-Mom	DPST-NO/NC	6 A 550 mA	125 V	85 °C	-25 °C	5000000 Cycles	100000 Cycles	Roller Side Rotary	Cable Leads	IP67 - Dust Tight Waterproof
