WMS-16 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

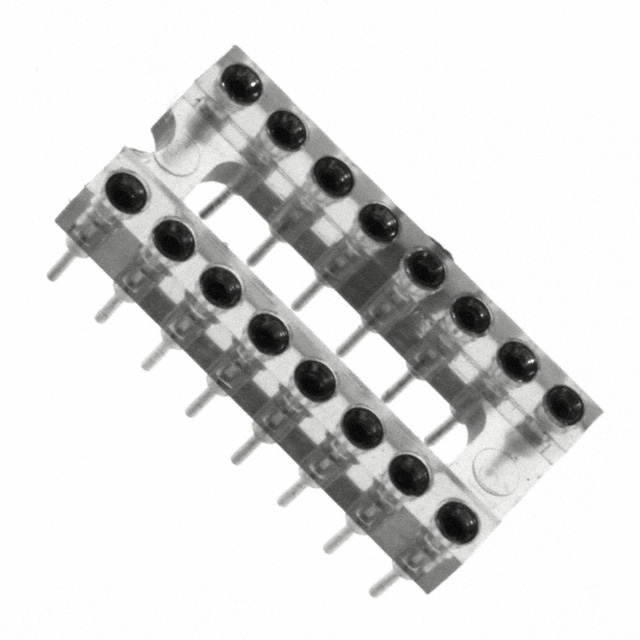

CONN IC DIP SOCKET 16POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Material - Mating | Mounting Type | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Material - Post [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Termination | Type | Type | Type | Contact Finish - Post | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 4 mOhm | 3 A | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 200 µin | 5.08 µm | Gold | Brass | 2 | 16 | 8 | Solder | 7.62 mm | 0.3 in | DIP | Tin | Open Frame Wash Away | -40 C | 105 ░C | Flash |
