ADS1120 Series
Manufacturer: Texas Instruments
Beta
⌘K

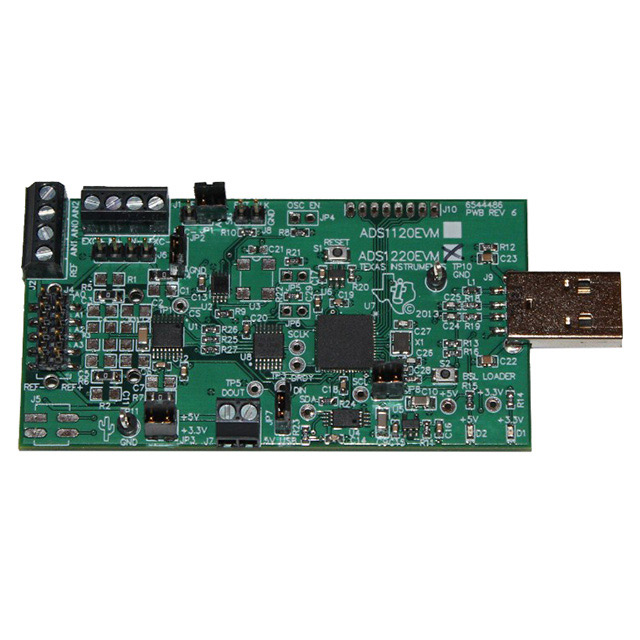

EVAL MODULE FOR ADS1120
| Part | Supplied Contents | Utilized IC / Part | Number of Bits | Power (Typ) @ Conditions | Input Range | Sampling Rate (Per Second) | Data Interface | Number of A/D Converters | Mounting Type | Input Type | Features | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Architecture | Configuration | Supplier Device Package | Reference Type | Number of Inputs | Ratio - S/H:ADC | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | ADS1120 | 16 | 2.1 mW | ±VREF | 2k | SPI | 1 | ||||||||||||||||||
 Texas Instruments | 16 | 2k | SPI | 1 | Surface Mount | Differential Single Ended | PGA Temperature Sensor | 5.5 V | 2.3 V | 5.5 V | 2.3 V | 125 °C | -40 °C | 16-VFQFN Exposed Pad | Sigma-Delta | MUX-PGA-ADC | 16-VQFN (3.5x3.5) | External Internal Supply | 2 4 | |||||||
Texas Instruments | 16 | 2k | SPI | 1 | Surface Mount | Differential Single Ended | PGA Temperature Sensor | 5.5 V | 2.3 V | 2.75 V 5.5 V | -2.3 V 2.3 V | 125 °C | -40 °C | 16-VFQFN Exposed Pad | Sigma-Delta | MUX-PGA-ADC | 16-VQFN (3.5x3.5) | 4 | 0:1 | |||||||
 Texas Instruments | 16 | 2k | SPI | 1 | Surface Mount | Differential Single Ended | PGA Temperature Sensor | 5.5 V | 2.3 V | 5.5 V | 2.3 V | 125 °C | -40 °C | 16-TSSOP | Sigma-Delta | MUX-PGA-ADC | 16-TSSOP | External Internal Supply | 2 4 | 0.173 in | 4.4 mm |
