AFC0612 Series

Catalog

FAN AXIAL 60X25.4MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Voltage - Rated	Features	RPM	Power (Watts)	Width [y]	Static Pressure	Static Pressure	Fan Type	Termination	Approval Agency	Noise	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Current Rating (Amps)	Weight [custom]	Weight [custom]

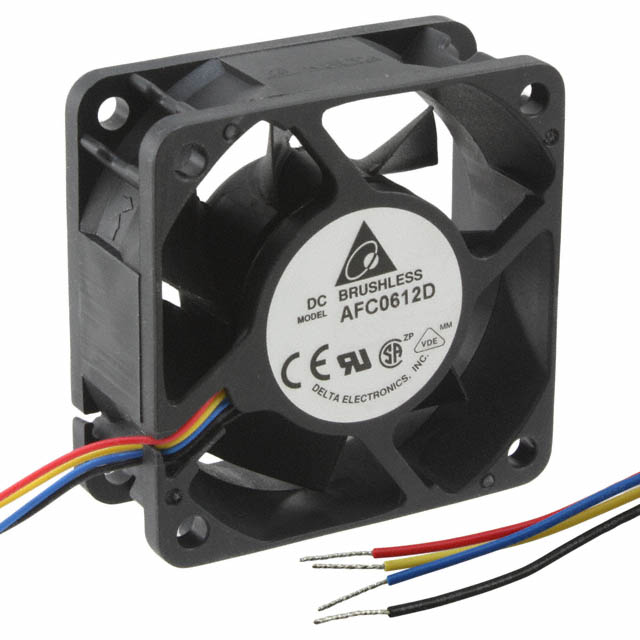

Delta Electronics AFC0612D-SP07	10.8 VDC	13.8 VDC	Plastic	70000 Hrs	Plastic	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4250 RPM	1.56 W	25.4 mm	52.6 Pa	0.211 in H2O	Tubeaxial	4 Wire Leads	CE CSA UL VDE	34 dB(A)	0.176 lb	80 g	60 mm	60 mm	23.4 CFM	0.655 m³/min

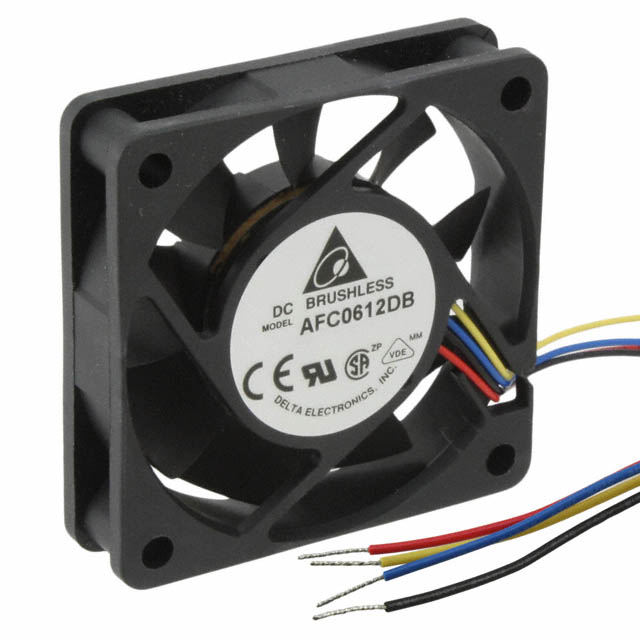

Delta Electronics AFC0612DB-F00	8 V	13.2 VDC	Plastic	70000 Hrs	Plastic	60 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7200 RPM	3.96 W	15 mm			Tubeaxial	4 Wire Leads	CE TUV UL	47.5 dB	0.098 lb	44.45 g	60 mm	60 mm	29.2 CFM	0.818 m³/min	0.33 A

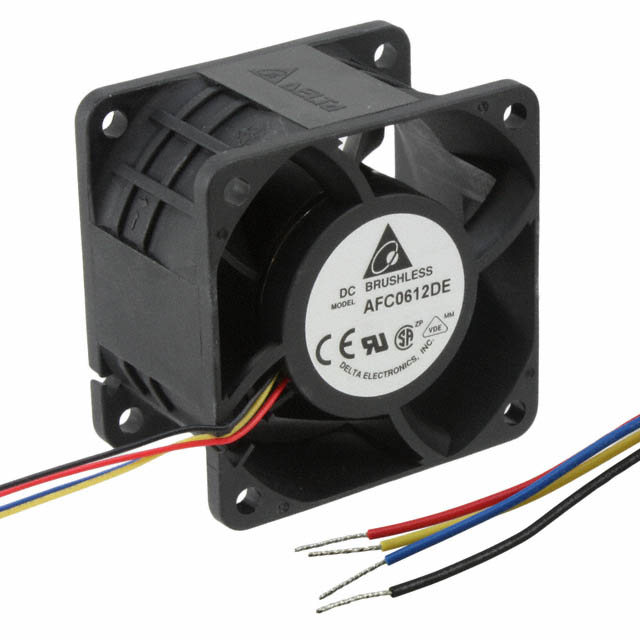

Delta Electronics AFC0612DE-AF00	8 V	13.2 VDC	Plastic	70000 Hrs	Plastic	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12000 RPM	18 W	38 mm	433.2 Pa	1.739 in H2O	Tubeaxial	4 Wire Leads	CE TUV UL	61.5 dB(A)			60 mm	60 mm	66.7 CFM	1.87 m³/min	1.5 A	0.258 lb	117.03 g
