SRCN1A25 Series

Catalog

CONN RCPT MALE 24P SOLDER CUP

Part	Primary Material	Material Flammability Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Applications	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Backshell Material, Plating	Contact Material	Voltage Rating	Number of Positions	Shell Finish	Color	Cable Opening	Cable Opening	Features	Fastening Type	Connector Type	Current Rating (Amps)	Shell Material	Orientation

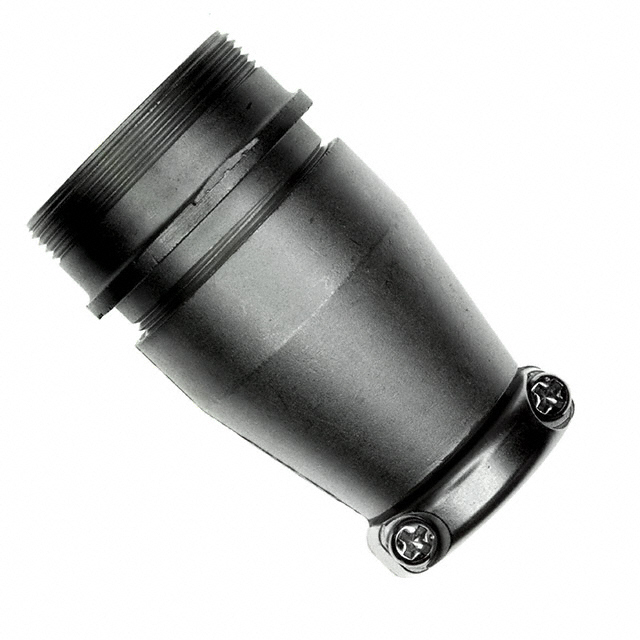

JAE Electronics SRCN1A25-24P	Metal	UL94 V-0	25	24	Communication Systems Measurement Telecommunications Test Equipment	Plastic	85 °C	-25 °C	Silver	Free Hanging (In-Line)	Aluminum Alloy Nickel	Copper Alloy	250 VAC 350 VDC	24	Nickel	Silver	17 mm	0.669 in	Backshell Cable Clamp	Threaded	Receptacle Male Pins	5 A	Aluminum Alloy	N (Normal)

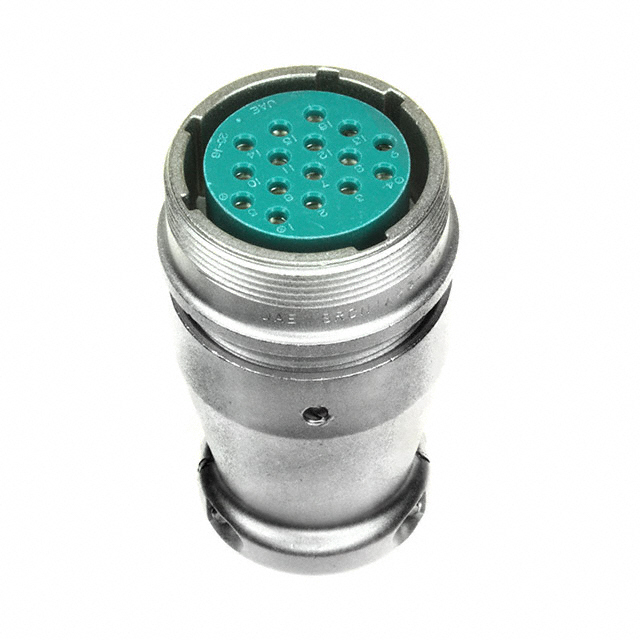

JAE Electronics SRCN1A25-16S	Metal	UL94 V-0	16	25	Communication Systems Measurement Telecommunications Test Equipment	Plastic	85 °C	-25 °C	Silver	Free Hanging (In-Line)	Aluminum Alloy Nickel	Copper Alloy	250 VAC 350 VDC	16	Nickel	Silver	17 mm	0.669 in	Backshell Cable Clamp	Threaded	Receptacle Female Sockets	10 A	Aluminum Alloy	N (Normal)

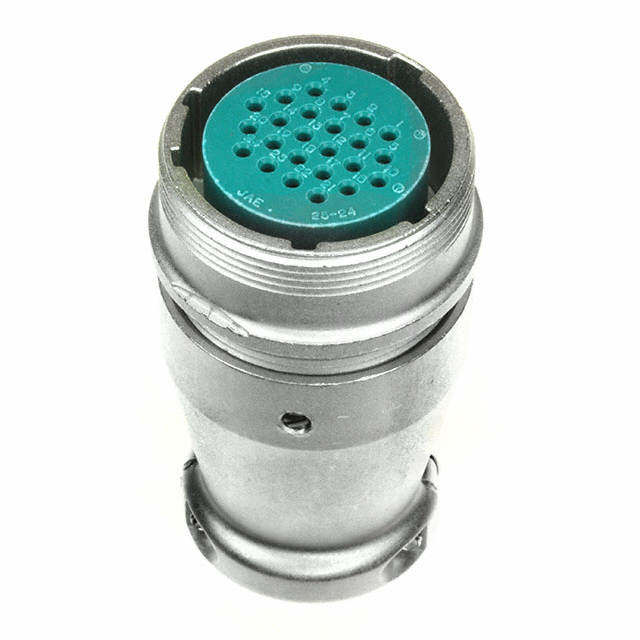

JAE Electronics SRCN1A25-24S	Metal	UL94 V-0	25	24	Communication Systems Measurement Telecommunications Test Equipment	Plastic	85 °C	-25 °C	Silver	Free Hanging (In-Line)	Aluminum Alloy Nickel	Copper Alloy	250 VAC 350 VDC	24	Nickel	Silver	17 mm	0.669 in	Backshell Cable Clamp	Threaded	Receptacle Female Sockets	5 A	Aluminum Alloy	N (Normal)

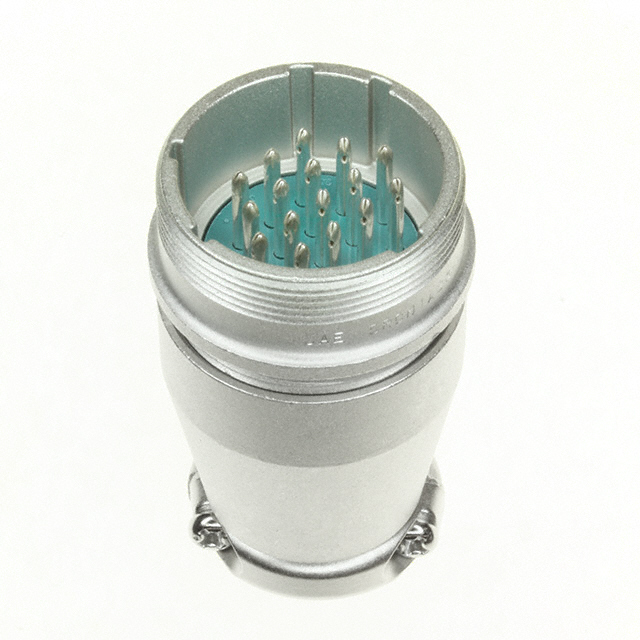

JAE Electronics SRCN1A25-16P	Metal	UL94 V-0	16	25	Communication Systems Measurement Telecommunications Test Equipment	Plastic	85 °C	-25 °C	Silver	Free Hanging (In-Line)	Aluminum Alloy Nickel	Copper Alloy	250 VAC 350 VDC	16	Nickel	Silver	17 mm	0.669 in	Backshell Cable Clamp	Threaded	Receptacle Male Pins	10 A	Aluminum Alloy	N (Normal)
