747786 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

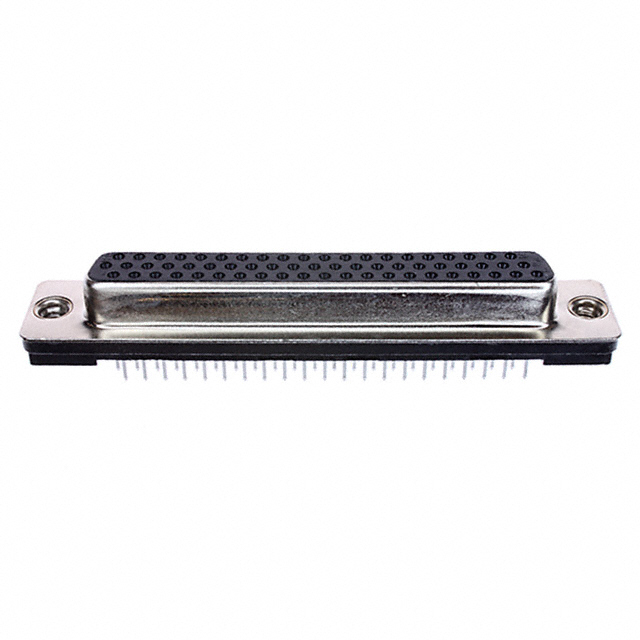

CONN D-SUB HD RCPT 62P VERT SLDR
| Part | Color | Voltage Rating | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Termination | Number of Rows [custom] | Flange Feature | Flange Feature | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Contact Type | Current Rating (Amps) | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 125 VDC | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 C | 105 ░C | Through Hole | Receptacle Female Sockets | Solder | 3 | Housing/Shell | 4-40 | 62 | C DC | 4 | Gold | Signal | 1.5 A | Nickel Plated Steel | UL94 V-0 | 30 Áin | 0.76 Ám | D-Sub High Density |
