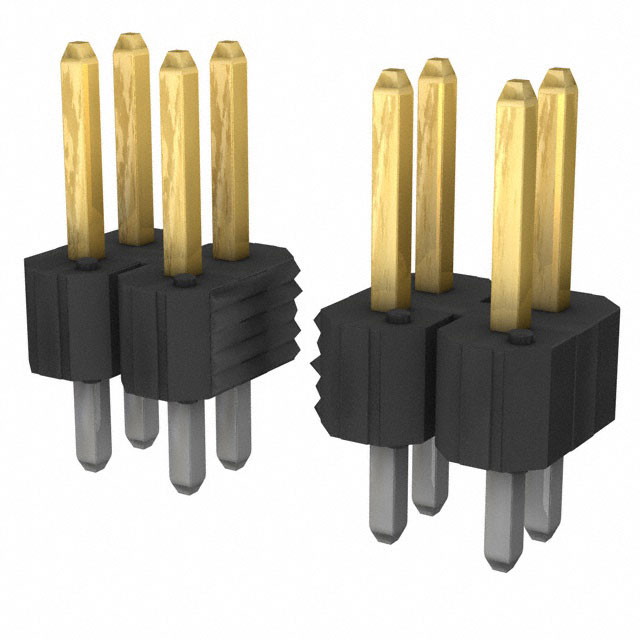

69157 Series

Catalog

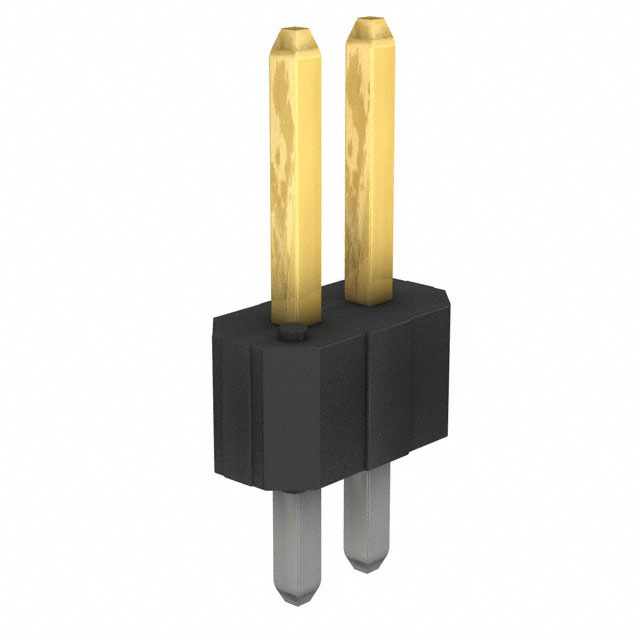

CONN HEADER VERT 2POS

Part	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Mounting Type	Termination	Contact Length - Post [x]	Contact Length - Post	Shrouding	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Contact Type	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post
Amphenol ICC (FCI) 69157-102HLF	Black	Push-Pull	30 Áin	0.76 Ám	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	2	Gold or Gold GXT™	3 A	2
Amphenol ICC (FCI) 69157-106HLF	Black	Push-Pull	30 Áin	0.76 Ám	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	6	Gold or Gold GXT™	3 A	2	0.1 in	2.54 mm
Amphenol ICC (FCI) 69157-272HLF	Black	Push-Pull	15 µin	0.38 µm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	72	Gold or Gold GXT™	3 A	2	0.1 in	2.54 mm
Amphenol ICC (FCI) 69157-172H	Black	Push-Pull	30 Áin	0.76 Ám	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	72	Gold or Gold GXT™	3 A	2	0.1 in	2.54 mm
Amphenol ICC (FCI) 69157-130HLF	Black	Push-Pull	30 Áin	0.76 Ám	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	30	Gold or Gold GXT™	3 A	2	0.1 in	2.54 mm
Amphenol ICC (FCI) 69157-456HLF	Black	Push-Pull	100 çin	2.54 çm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	56		3 A	2	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 69157-446HLF	Black	Push-Pull	100 çin	2.54 çm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	46		3 A	2	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 69157-418HLF	Black	Push-Pull	100 çin	2.54 çm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	18		3 A	2	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 69157-410HLF	Black	Push-Pull	100 çin	2.54 çm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	10		3 A	2	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 69157-210HLF	Black	Push-Pull	15 µin	0.38 µm	-65 ░C	130 °C	0.1 in	2.54 mm	0.41 in	10.41 mm	Phosphor Bronze	Header	2.54 mm	0.1 in	5.08 mm	0.2 in	Through Hole	Solder	0.11 in	2.79 mm	Unshrouded	UL94 V-0	Square	All	Male Pin	10	Gold or Gold GXT™	3 A	2	0.1 in	2.54 mm
