055091 Series

Manufacturer: Molex

Catalog

0550911075

Part	Connector Type	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Height Above Board [z]	Height Above Board [z]
Molex 0550911075

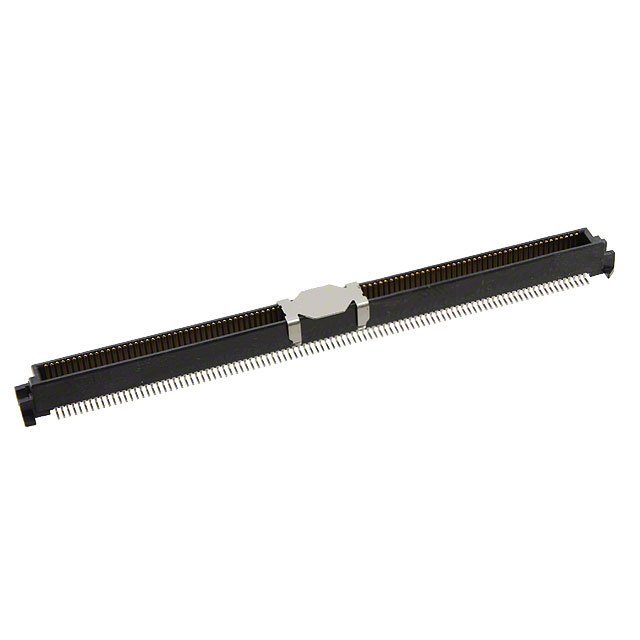

Molex 0550912075	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount	0.205 in	5.2 mm	Gold
Molex 0550910274	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	20	5 mm	0.197 in

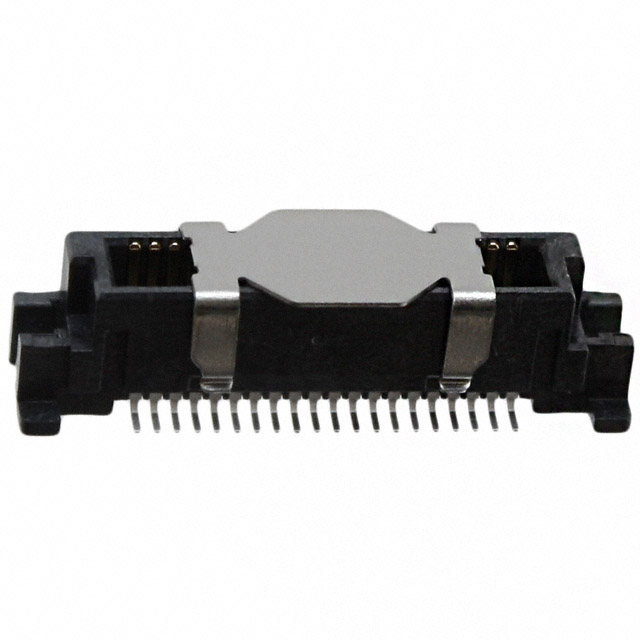

Molex 0550910474	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	40	5 mm	0.197 in
Molex 0550912475	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	240	5 mm	0.197 in

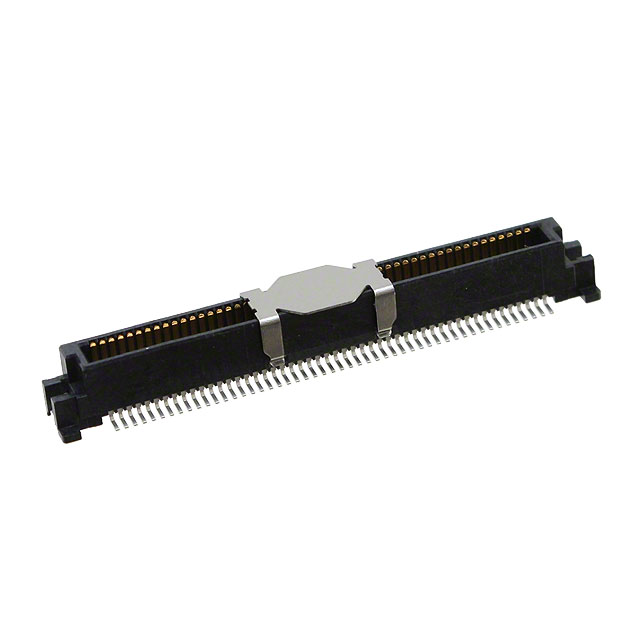

Molex 0550911074	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	100	5 mm	0.197 in
Molex 0550910774	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	70	5 mm	0.197 in

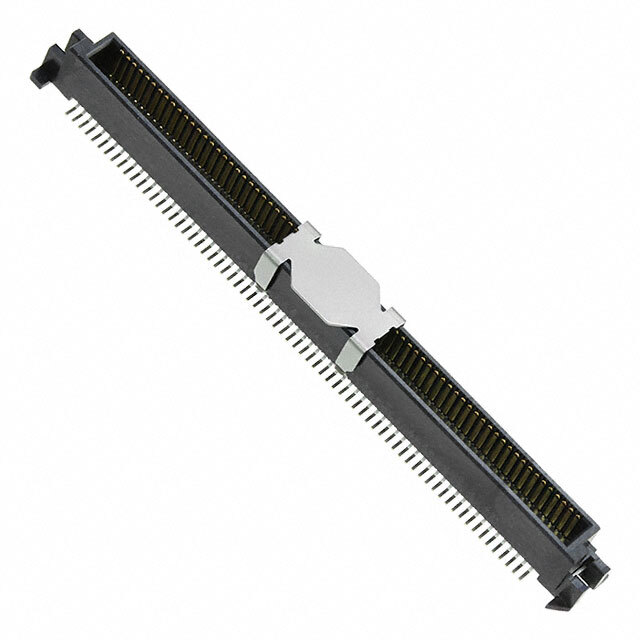

Molex 0550911474	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	140	5 mm	0.197 in

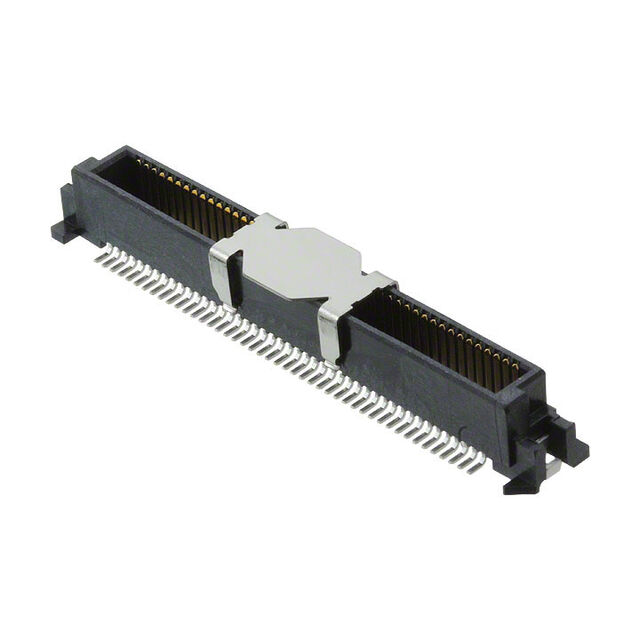

Molex 0550910974	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Board Guide Solder Retention	10 Áin	0.25 Ám	6 mm 12 mm	2	Surface Mount			Gold	90	5 mm	0.197 in
