227161 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN BNC JACK R/A 50 OHM PCB
| Part | Housing Color | Center Contact Material | Body Material | Impedance | Includes | Features | Voltage Rating | Connector Style | Shield Termination | Mounting Feature | Number of Ports | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Plating | Mounting Type | Frequency - Max [Max] | Contact Termination | Mating Cycles | Fastening Type | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

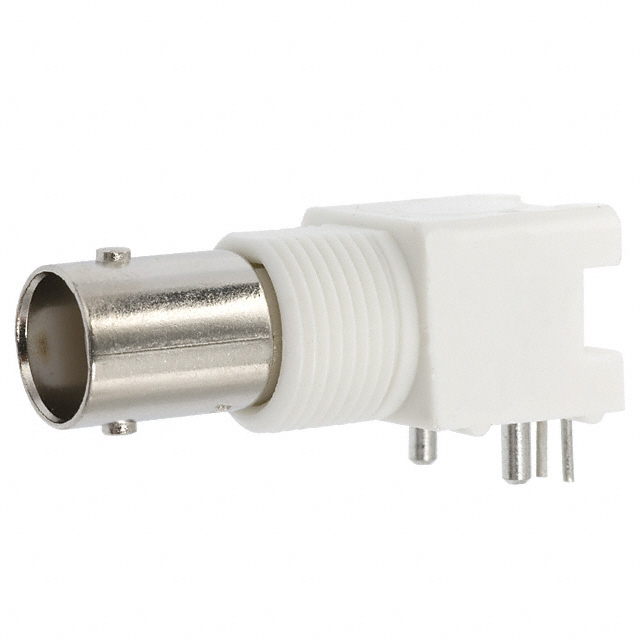

 TE Connectivity Raychem Cable Protection | Silver White | Phosphor Bronze | Zinc | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | Board Guide Isolated | 500 V | BNC | Solder | Bulkhead - Front Side Nut | 1 | Female Socket Jack | 85 °C | -55 °C | Nickel | Gold | Panel Mount Right Angle Through Hole | 4 GHz | Solder | 500 | Bayonet Lock | Polymethylpentene (PMP) |

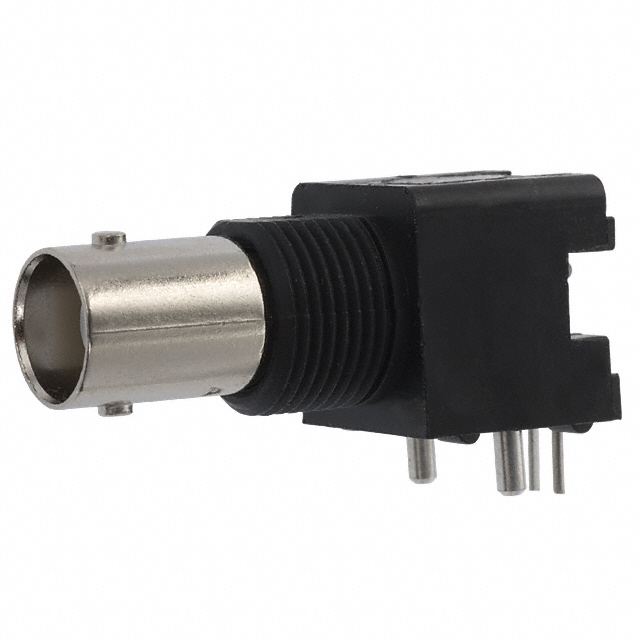

 TE Connectivity Raychem Cable Protection | Black Silver | Phosphor Bronze | Zinc | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | Board Guide Isolated | 500 V | BNC | Solder | Bulkhead - Front Side Nut | 1 | Female Socket Jack | 85 °C | -55 °C | Nickel | Tin | Panel Mount Right Angle Through Hole | 4 GHz | Solder | 500 | Bayonet Lock | Polymethylpentene (PMP) |
TE Connectivity Raychem Cable Protection | Silver White | Phosphor Bronze | Zinc | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | Board Guide Isolated | 500 V | BNC | Solder | Bulkhead - Front Side Nut | 1 | Female Socket Jack | 85 °C | -55 °C | Nickel | Gold | Panel Mount Right Angle Through Hole | 4 GHz | Solder | 500 | Bayonet Lock | Polymethylpentene (PMP) |
 TE Connectivity Raychem Cable Protection | Black Silver | Phosphor Bronze | Zinc | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | Board Guide Isolated | 500 V | BNC | Solder | Bulkhead - Front Side Nut | 1 | Female Socket Jack | 85 °C | -55 °C | Nickel | Gold | Panel Mount Right Angle Through Hole | 4 GHz | Solder | 500 | Bayonet Lock | Polymethylpentene (PMP) |
 TE Connectivity Raychem Cable Protection | Silver White | Phosphor Bronze | Zinc | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | Board Guide Isolated | 500 V | BNC | Solder | Bulkhead - Front Side Nut | 1 | Female Socket Jack | 85 °C | -55 °C | Nickel | Gold | Panel Mount Right Angle Through Hole | 4 GHz | Solder | 500 | Bayonet Lock | Polymethylpentene (PMP) |
