TX25-80P Series

Catalog

CONN PLUG 80POS VERT GOLD

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Finish	Mated Stacking Heights	Number of Rows [custom]	Features

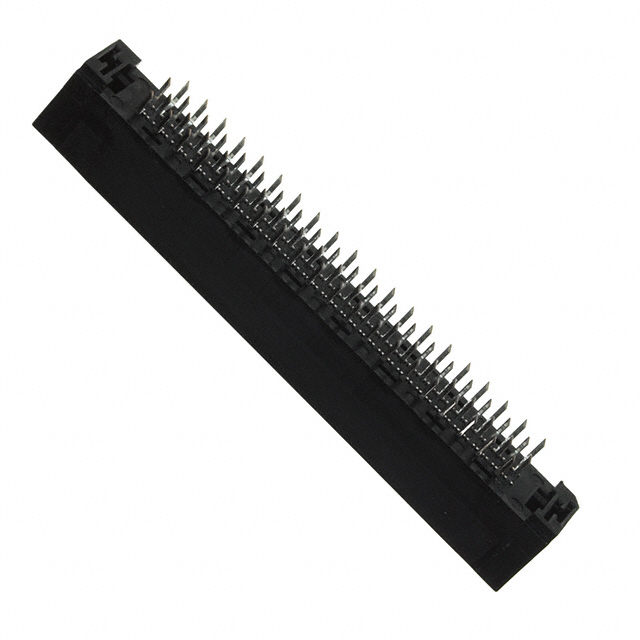

JAE Electronics TX25-80P-6ST-N1E	0.362 in	9.2 mm	80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	12 mm 16 mm 18 mm	2

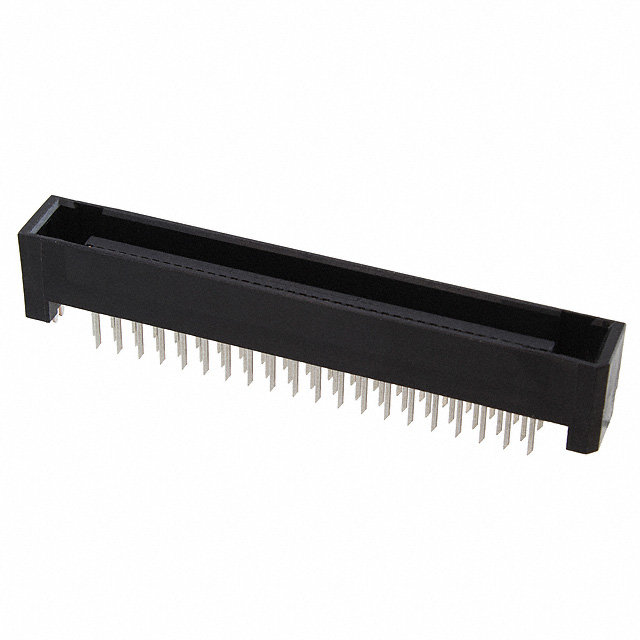

JAE Electronics TX25-80P-8ST-H1E	0.441 in	11.2 mm	80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	14 mm 18 mm 20 mm	2	Board Lock

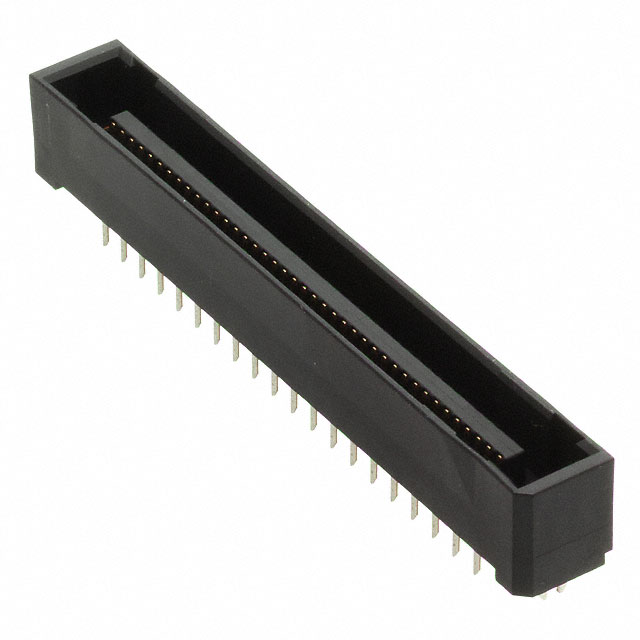

JAE Electronics TX25-80P-6ST-H1E	0.362 in	9.2 mm	80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	12 mm 16 mm 18 mm	2	Board Lock

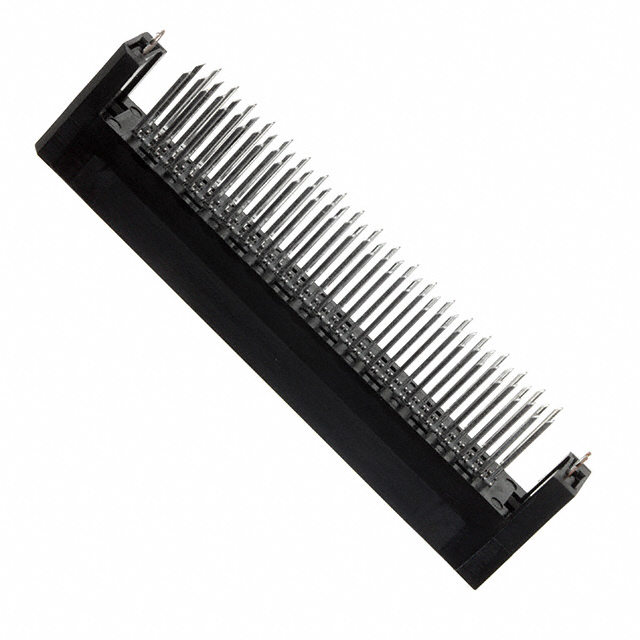

JAE Electronics TX25-80P-12ST-H1E	0.598 "	15.2 mm	80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	18 mm 22 mm 24 mm	2	Board Lock

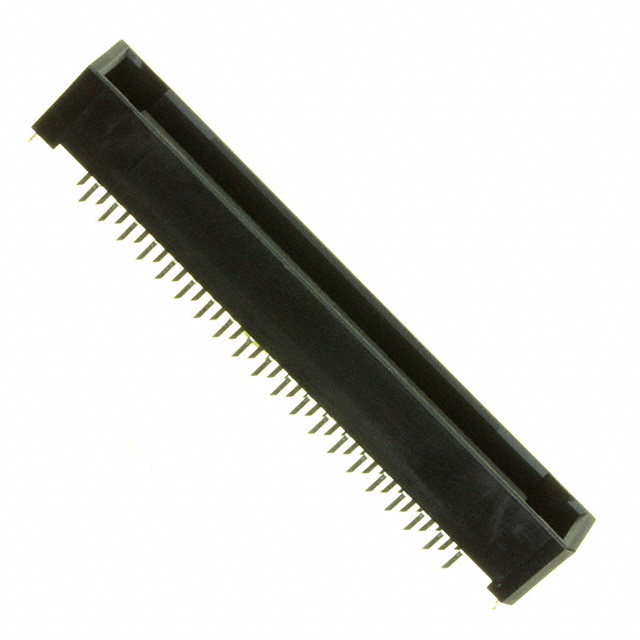

JAE Electronics TX25-80P-6ST-E1E			80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	12 mm 16 mm 18 mm	2	Board Lock

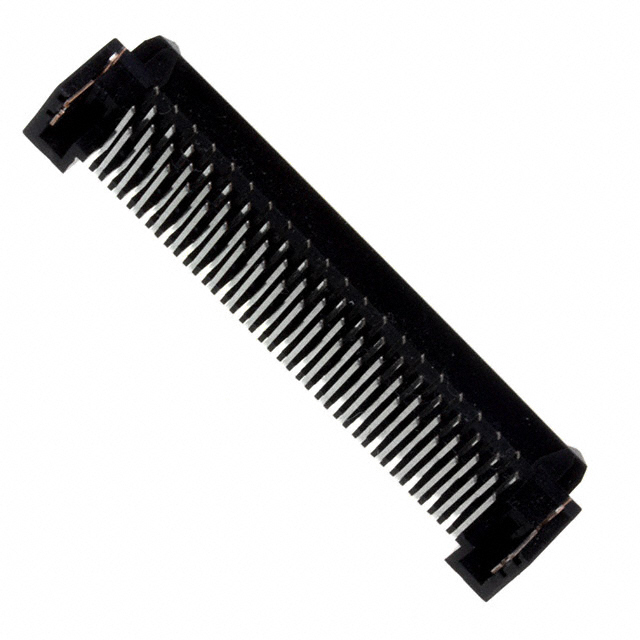

JAE Electronics TX25-80P-12ST-N1E	0.598 "	15.2 mm	80	Through Hole	0.1 m 0.1 Ám	4 in 4 Áin	0.05 in	1.27 mm	Gold	18 mm 22 mm 24 mm	2

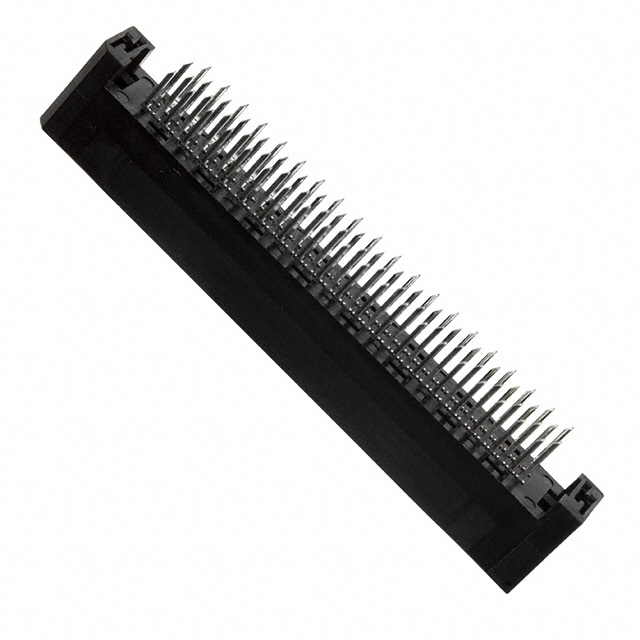

JAE Electronics TX25-80P-8ST-N1E	0.441 in	11.2 mm	80	Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold	14 mm 18 mm 20 mm	2

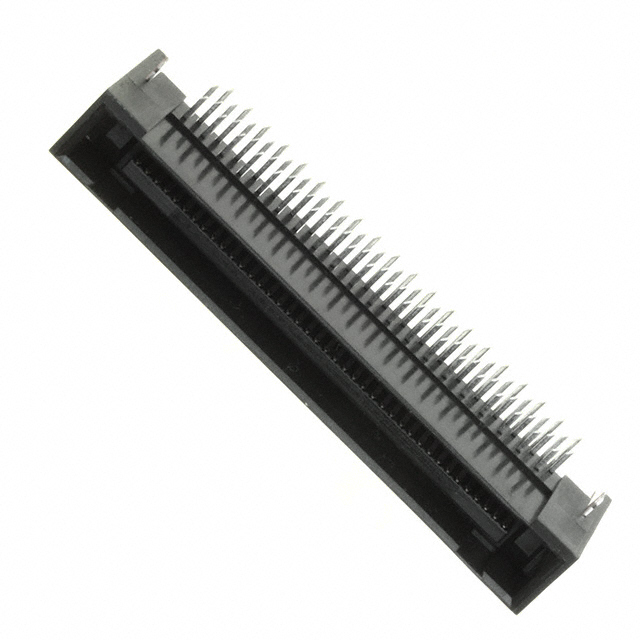

JAE Electronics TX25-80P-LT-H1E	0.354 in	9 mm	80	Right Angle Through Hole	0.1 Ám	4 Áin	0.05 in	1.27 mm	Gold		2	Board Lock
