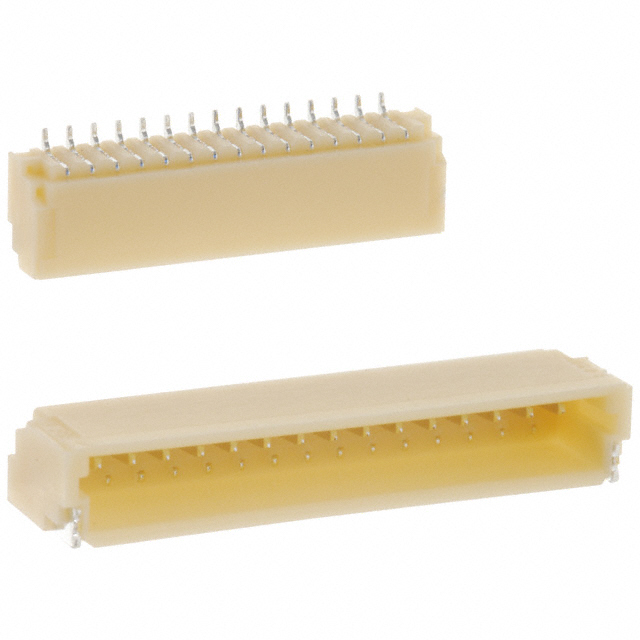

SM15B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 15POS 1MM
| Part | Shrouding | Contact Finish - Post | Termination | Insulation Color | Material Flammability Rating | Fastening Type | Contact Shape | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Type | Contact Material | Number of Rows | Features | Insulation Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Connector Type | Mounting Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Tin | Solder | Natural | UL94 V-0 | Push-Pull | Square | 0.114 in | 2.9 mm | 1 mm | 0.039 in | 15 | Male Pin | Copper Alloy | 1 | Solder Retention | Nylon Polyamide (PA) | 50 V | 85 °C | -25 °C | All | Header | Right Angle Surface Mount | Board to Cable/Wire |
