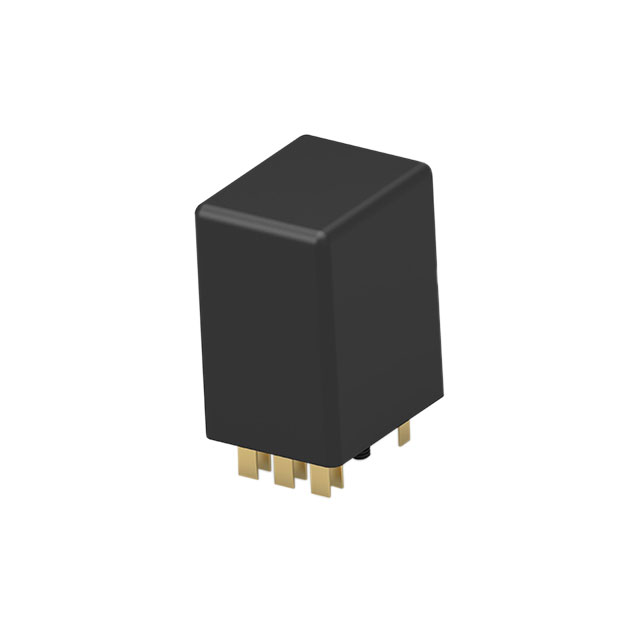

V23154 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURP
| Part | Mounting Type | Release Time | Termination Style | Relay Type | Coil Type | Contact Form | Contact Material | Switching Voltage | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Resistance | Switching Voltage [Max] | Load - Max Switching | Load - Max Switching | Must Operate Voltage | Coil Current | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPDT (2 Form C) | Gold (Au) Silver (Ag) | 250 VAC 250 VDC | 5 A | 70 °C | -40 C | 7.5 ms | |||||||
TE Connectivity AMP Connectors | Through Hole | 3 ms | PC Pin | General Purpose | Non Latching | Gold (Au) Silver (Ag) | 250 VAC 250 VDC | 5 A | 70 °C | -40 C | 7.5 ms | ||||||||
 TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPDT (2 Form C) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 4700 Ohms | 125 VAC 150 VDC | 625 VA | 750 W | 27 VDC | 16.7 mA | 60 VDC | |
 TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPST-NO (2 Form A) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 20.9 kOhms | 125 VAC 150 VDC | 625 VA | 750 W | 61 VDC | 16.7 mA | 125 VDC | |
TE Connectivity AMP Connectors | Through Hole | 3 ms | PC Pin | General Purpose | Non Latching | DPST-NO (2 Form A) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 890 Ohms | 125 VAC 150 VDC | 625 VA | 750 W | 11 VDC | 16.7 mA | 24 VDC | |
TE Connectivity AMP Connectors | Through Hole | 3 ms | PC Pin | General Purpose | Non Latching | DPST-NO/NC (1 Form A 1 Form B) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 890 Ohms | 125 VAC 150 VDC | 625 VA | 750 W | 11 VDC | 16.7 mA | 24 VDC | |
TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPST-NO/NC (1 Form A 1 Form B) | Gold (Au) Silver (Ag) | 250 VAC 250 VDC | 5 A | 70 °C | -40 C | 7.5 ms | 2 Ohms | 0.4 VDC | 16.7 mA | 1.1 VDC | |||
TE Connectivity AMP Connectors | Through Hole | 3 ms | PC Pin | General Purpose | Non Latching | DPDT (2 Form C) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 890 Ohms | 125 VAC 150 VDC | 625 VA | 750 W | 11 VDC | 16.7 mA | 24 VDC | |
TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPST-NO/NC (1 Form A 1 Form B) | Gold (Au) Silver (Ag) | 70 °C | -40 C | 7.5 ms | 150 Ohms | 16.7 mA | 10 VDC | ||||||
TE Connectivity AMP Connectors | Socketable | 3 ms | Plug In | General Purpose | Non Latching | DPDT (2 Form C) | Silver (Ag) | 5 A | 70 °C | -40 C | 7.5 ms | 1.7 kOhms | 125 VAC 150 VDC | 625 VA | 750 W | 22.6 VDC | 16.7 mA | 32 VDC |
