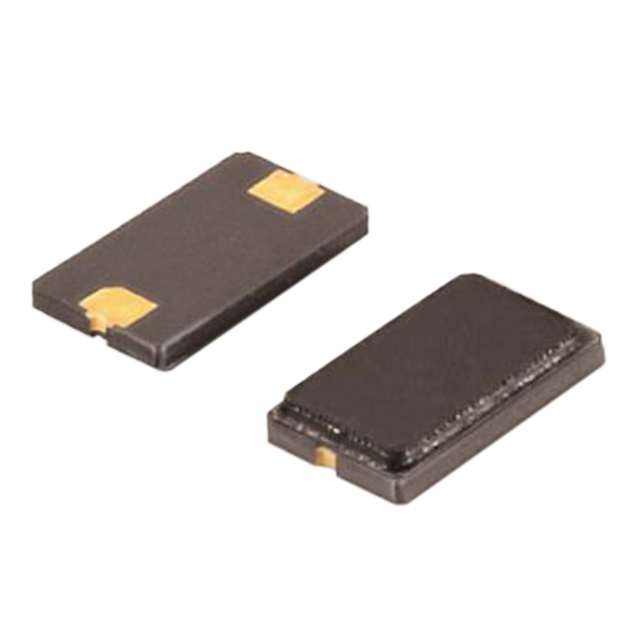

ECS-23G Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 48MHZ 18PF -40C +85C

Part	Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Mode	Package / Case	Frequency	Mounting Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance
ECS Inc. ECS-480-18-23G-JGN-TR	MHz Crystal	50 Ohms	0.055 in	1.4 mm	20 ppm	0.236 in	6 mm	0.138 in	3.5 mm	Fundamental	2-SMD No Lead	48 MHz	Surface Mount	2-SMD	6	3.5	30 ppm	85 °C	-40 C	18 pF
ECS Inc. ECS-240-18-23G-JGN-TR	MHz Crystal	50 Ohms	0.055 in	1.4 mm	20 ppm	0.236 in	6 mm	0.138 in	3.5 mm	Fundamental	2-SMD No Lead	24 MHz	Surface Mount	2-SMD	6	3.5	30 ppm	85 °C	-40 C	18 pF
ECS Inc. ECS-240-12-23G-JGN-TR	MHz Crystal	50 Ohms	0.055 in	1.4 mm	20 ppm	0.236 in	6 mm	0.138 in	3.5 mm	Fundamental	2-SMD No Lead	24 MHz	Surface Mount	2-SMD	6	3.5	30 ppm	85 °C	-40 C	12 pF
