FR02 Series
Manufacturer: JAE Electronics
Beta
⌘K

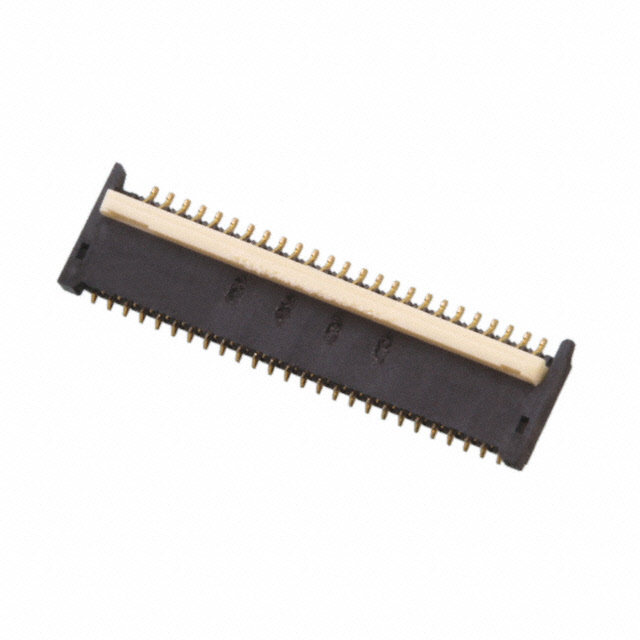

FFC & FPC CONNECTORS 51 POSITION 0.2MM PITCH 0.82MM HEIGHT
| Part | Actuator Color | Current Rating (Amps) | Housing Color | Locking Feature | Features | Housing Material | Contact Material | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board | Height Above Board | Flat Flex Type | Connector/Contact Type | Contact Finish | Mounting Type | Cable End Type | Voltage Rating | Pitch | Pitch | Termination | Number of Positions | FFC, FCB Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Natural | 0.25 A | Black | Backlock Flip Lock | Low Insertion Force (LIF) | Plastic | Phosphor Bronze | Plastic | 85 °C | -40 C | 0.032 " | 0.81 mm | FPC | Contacts Top and Bottom | Gold | Right Angle Surface Mount | Tabbed or Tapered | 50 V | 0.2 mm | 0.008 in | Solder | 51 | 0.2 mm |
