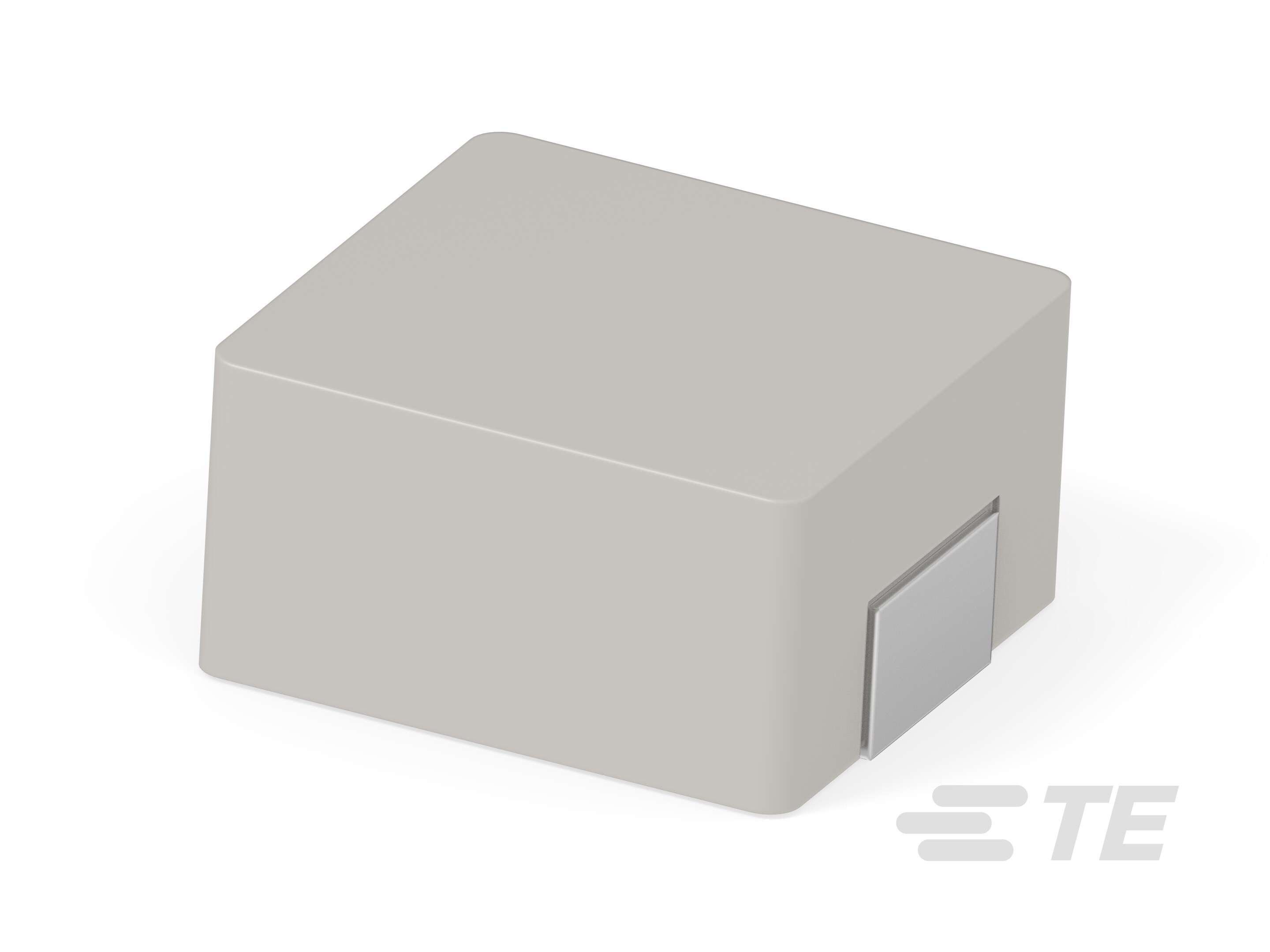

Sigma 3656 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

3656 0754 47UH 20% T&R

...

Part	Current Rating (Amps)	Current - Saturation (Isat)	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Shielding	Type	Ratings	Tolerance	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Size / Dimension [y]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max)
TE Connectivity AMP Connectors 36560754M470T	2.4 A	4.1 A	47 µH	7.7 mm	0.303 "	7.2 mm	0.283 in	171.6 mOhm	Surface Mount	5.4 mm	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C
TE Connectivity AMP Connectors 36560530M1R2T	8.5 A	9.5 A	1.2 µH	5.4 mm	0.213 in	5.2 mm	0.205 "	16 mOhm	Surface Mount			Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C	0.118 "	3 mm
TE Connectivity AMP Connectors 36560420MR68T	7 A	8 A	0.68 µH	4.4 mm	0.173 in		0.165 in	18 mOhm	Surface Mount	0.079 in		Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C			SMD	4.2 mm	2 mm
TE Connectivity AMP Connectors 36560754M2R2T	9.7 A	14.8 A	2.2 µH	7.7 mm	0.303 "	7.2 mm	0.283 in	11.4 mOhm	Surface Mount	5.4 mm	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C
TE Connectivity AMP Connectors 36561054M100T	8.7 A	12.7 A	10 µH	11.5 mm	0.453 "	10 mm	0.394 in		Surface Mount	5.4 mm	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C						24.2 mOhm
TE Connectivity AMP Connectors 36560630MR56T	16.5 A	18 A	560 nH	7 mm	0.276 "	6.6 mm	0.26 in	4.5 mOhm	Surface Mount			Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C	0.118 "	3 mm
TE Connectivity AMP Connectors 36561265M820T	4 A	4.5 A	82 µH					135 mOhm	Surface Mount	0.256 in		Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C					6.5 mm

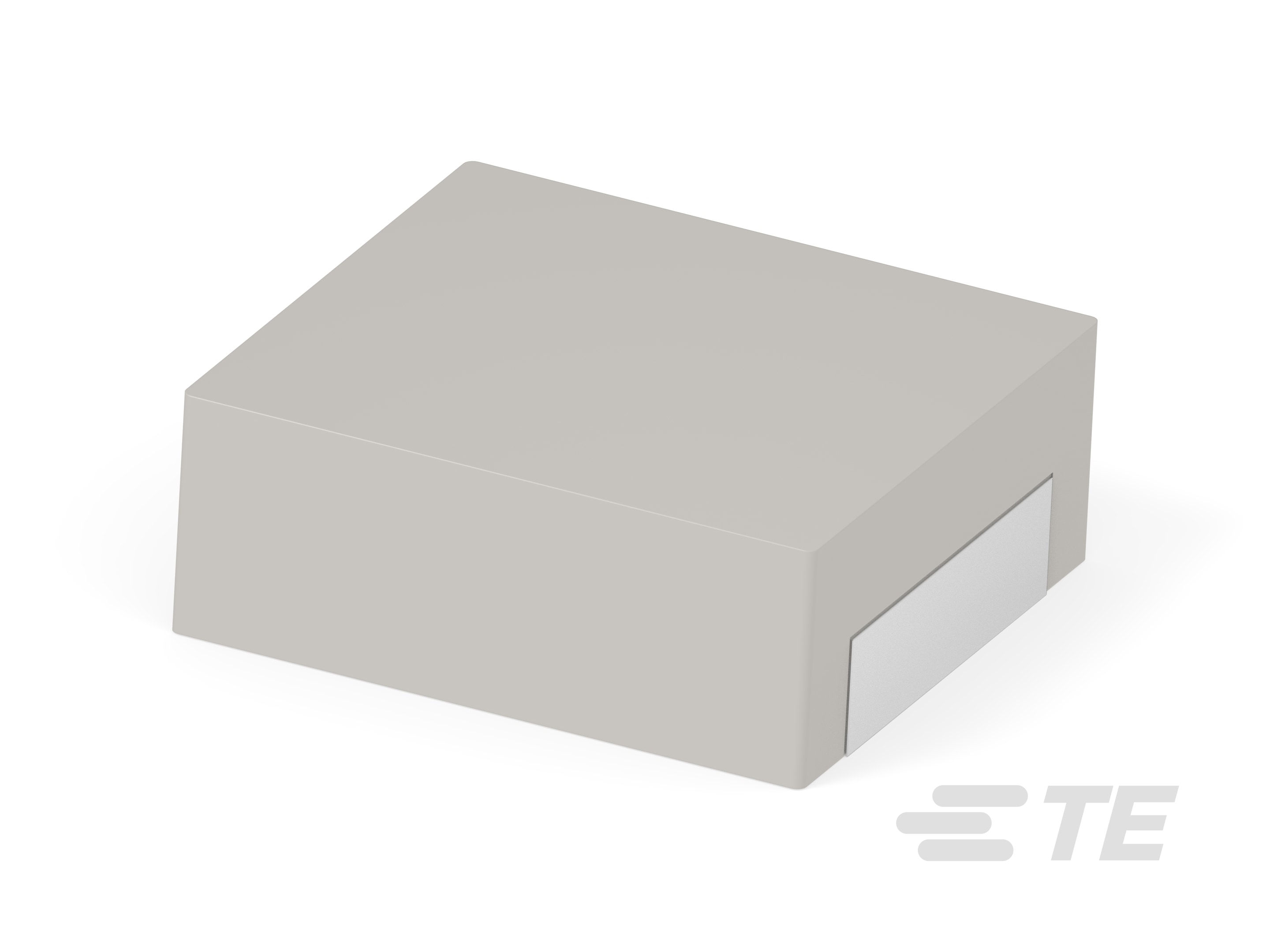

TE Connectivity AMP Connectors 36561770M680T	5.2 A	6.5 A	68 µH	18.8 mm	0.74 "	17.3 mm	0.681 in	85 mOhm	Surface Mount	7 mm	0.276 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C
TE Connectivity AMP Connectors 36561040M101T	2 A	2.3 A	100 µH	11.5 mm	0.453 "	10 mm	0.394 in	340 mOhm	Surface Mount		0.157 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C							4 mm
TE Connectivity AMP Connectors 36560630M4R7T	6 A	9 A	4.7 ÁH	7 mm	0.276 "	6.6 mm	0.26 in		Surface Mount			Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 C	-55 C	0.118 "	3 mm				33 mOhm
