MS5806 Series

Catalog

SENSOR 17.4PSIA 24BIT

Part	Accuracy	Accuracy	Port Style	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]

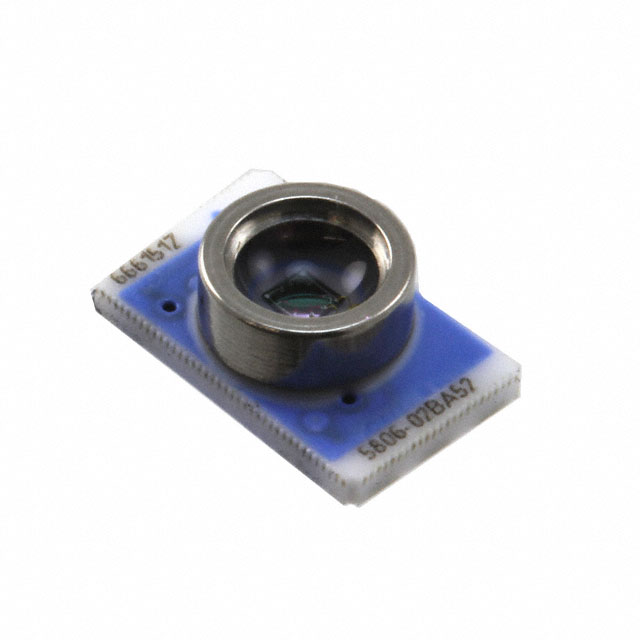

TE Connectivity AMP Connectors MS580602BA52-51	0.058 PSI	0.4 kPa	No Port	30 kPa	17.4 PSI	120 kPa	4.35 PSI	3.6 V	1.8 V	24 b	I2C	72.52 PSI	500 kPa	85 °C	-40 C
