CC3-1212 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 3 W, 2 OUTPUT, 12 V

Part	Applications	Current - Output (Max)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Isolation	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Control Features	Power (Watts)	Current - Output (Max) [Max]
TDK Corporation CC3-1212DF-E	ITE (Commercial)	125 mA	15 V	12 V	500 V	7-DIP Module	0.9 in	16.6 mm	0.34 in	8.5 mm	0.65 "	22.9 mm	2	9 V	18 V	Isolated Module	85 °C	-40 C	Through Hole	-15 V	-12 V	Active Low Enable	3 W

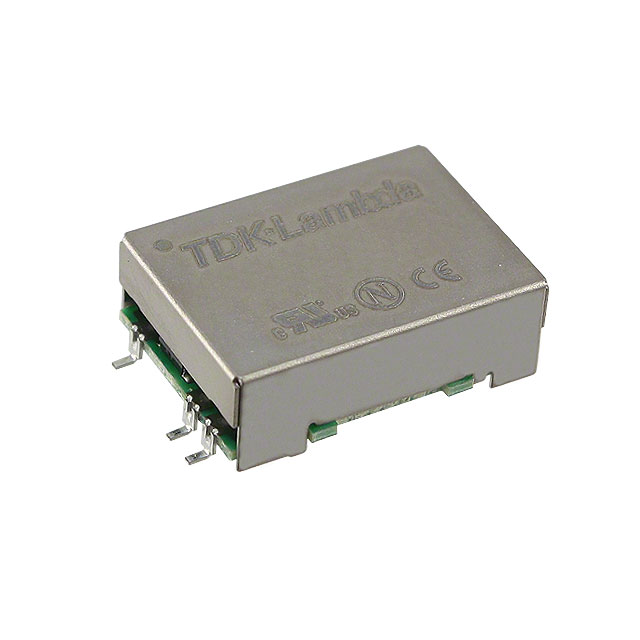

TDK Corporation CC3-1212SR-E	ITE (Commercial)		15 V	12 V	500 V	7-SMD Module	0.9 in	16.6 mm	0.35 in	8.8 mm	0.65 "	22.9 mm	1	9 V	18 V	Isolated Module	85 °C	-40 C	Surface Mount			Active Low Enable	3 W	250 mA
