OSTTB10 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

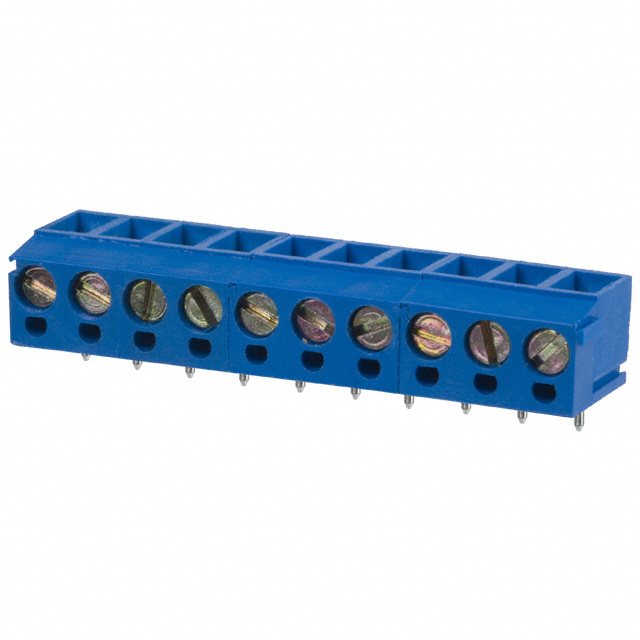

TERM BLK 10POS TOP ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Material - Plating | Screw Material - Plating | Screw Thread | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Wire Termination | Features | Positions Per Level | Current | Color | Pitch | Pitch | Number of Levels | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Thermoplastic | Tin Plated | Steel - Zinc Plated | M3 | Stainless Steel | 2.6 Lb-In | 0.3 Nm | Screw - Leaf Spring Wire Guard | Interlocking (Side) | 10 | 16 A | Blue | 0.197 in | 5 mm | 1 | Through Hole | 14 AWG | 22 AWG | Vertical with Board |
