TPS2501 Series
Manufacturer: Texas Instruments
Beta
⌘K
0.13-1.4A ADJ. ILIMIT, 1.8-5.25V, 80MΩ USB POWER SWITCH + BOOST CONVERTER IN CONSTANT FREQUENCY
| Part | Switch Type | Supplier Device Package | Ratio - Input:Output [custom] | Voltage - Supply (Vcc/Vdd) | Number of Outputs | Rds On (Typ) | Output Type | Fault Protection | Input Type | Package / Case | Features | Current - Output (Max) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Output Configuration | Interface | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplied Contents | Utilized IC / Part | Function | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | USB Switch | 10-VSON (3x3) | 1:2 | 2 | 80 mOhm | N/P-Channel | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 10-VFDFN Exposed Pad | Boost Converter Status Flag | 1.4 A | 5.25 V | 1.8 V | High Side or Low Side | Logic | Surface Mount | -40 °C | 125 ¯C | |||||

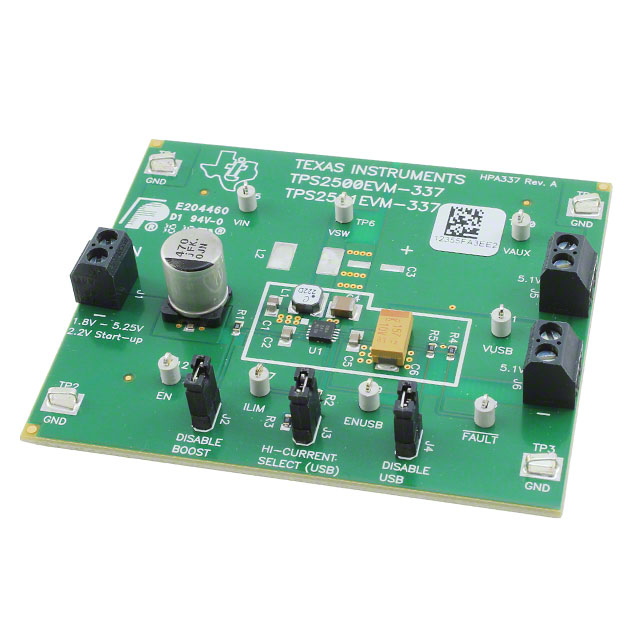

 Texas Instruments | Board(s) | TPS2501 | Power Distribution Switch (Load Switch) | Power Management | |||||||||||||||||||
Texas Instruments | USB Switch | 10-VSON (3x3) | 1:2 | 2 | 80 mOhm | N/P-Channel | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 10-VFDFN Exposed Pad | Boost Converter Status Flag | 1.4 A | 5.25 V | 1.8 V | High Side or Low Side | Logic | Surface Mount | -40 °C | 125 ¯C |
