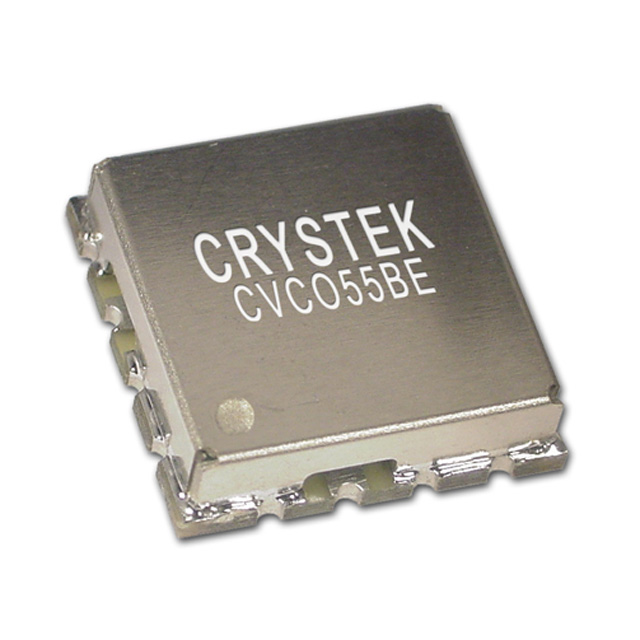

CVCO55BE Series

Catalog

VCO 1950MHZ 0.3-4.7V 12.7X12.7MM

Part	Icc Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Height	Height	Frequency - Center	2nd Harmonic, Typ (dBc)	Operating Temperature [Max]	Operating Temperature [Min]	Power (dBm)	Package / Case	Tuning Voltage (VDC) [Min]	Tuning Voltage (VDC) [Max]	Phase Noise Typ (dBc/Hz)	Pushing (MHz/V)	Frequency Range [Min]	Frequency Range [Max]	Voltage - Supply	Icc Max
Crystek Corporation CVCO55BE-1750-2150	25 mA	12.7 mm	12.7 mm	0.15 in	3.81 mm	1.95 GHz	-15 dBc	85 °C	-40 C	0 dBm	16-QFN Variant	0.3 V	4.7 V	-97 dBc/Hz	1.5 MHz/V	1.75 GHz	2.15 GHz
Crystek Corporation CVCO55BE-1820-2100	30 mA	12.7 mm	12.7 mm	0.15 in	3.81 mm	1960 MHz	-15 dBc	85 °C	-40 C	0 dBm	16-QFN Variant	0.5 V	18 V	-105 dBc/Hz	1.5 MHz/V	1820 MHz	2100 MHz	8 V
Crystek Corporation CVCO55BE-1520-1635		12.7 mm	12.7 mm	0.15 in	3.81 mm	1577.5 MHz	-15 dBc	85 °C	-40 C	2.5 dBm	16-QFN Variant	0.5 V	4.5 V	-100 dBc/Hz	3 MHz/V	1.52 GHz	1.635 GHz		35 mA
Crystek Corporation CVCO55BE-2650-2800	25 mA	12.7 mm	12.7 mm	0.15 in	3.81 mm	2725 MHz	-15 dBc	85 °C	-40 C	0 dBm	16-QFN Variant	0.5 V	4.6 V	-102 dBc/Hz	2 MHz/V	2650 MHz	2.8 GHz
Crystek Corporation CVCO55BE-2425-2820		12.7 mm	12.7 mm	0.15 in	3.81 mm	2622.5 MHz	-10 dBc	85 °C	-40 C	0 dBm	16-QFN Variant	0.5 V	18 V	-100 dBc/Hz		2425 MHz	2820 MHz	8 V	35 mA
Crystek Corporation CVCO55BE-2490-2530		12.7 mm	12.7 mm	0.15 in	3.81 mm	2510 MHz	-15 dBc	85 °C	-40 C	6 dBm	16-QFN Variant	0 V	5 V	-104 dBc/Hz	2 MHz/V	2.49 GHz	2530 MHz	8 V	35 mA
Crystek Corporation CVCO55BE-0800-1600	30 mA	12.7 mm	12.7 mm	0.15 in	3.81 mm	1.2 GHz	-10 dBc	85 °C	-40 C	6 dBm	16-QFN Variant	0.5 V	19 V	-100 dBc/Hz	2 MHz/V	800 MHz	1600 MHz	11.5 V
