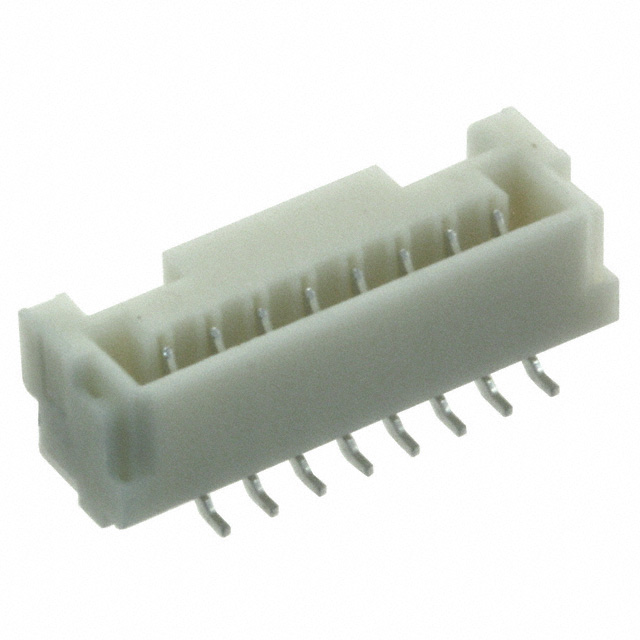

BM08B-GV Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD 8POS 1.25MM
| Part | Mated Stacking Heights | Termination | Number of Positions Loaded | Material Flammability Rating | Shrouding | Voltage Rating | Connector Type | Contact Material | Number of Rows | Mounting Type | Features | Contact Shape | Insulation Material | Style | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish - Post | Contact Type | Number of Positions | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 8.8 mm | Solder | All | UL94 V-0 | Shrouded - 4 Wall | 50 V | Header | Phosphor Bronze | 1 | Surface Mount | Solder Retention | Rectangular | Nylon 6T Polyamide (PA6T) | Board to Cable/Wire | 85 °C | -25 °C | 4.05 mm | 0.159 in | 0.049 in | 1.25 mm | Latch Holder | Tin | Outer Shroud Contact | 8 | Natural |
