T40110 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

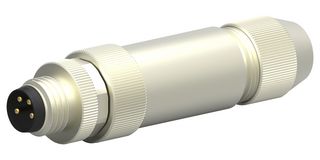

SENSOR CONNECTOR, M8, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT
| Part | Applications | Ingress Protection | Mounting Type | Current Rating (Amps) | Features | Termination | Fastening Type | Shell Material | Number of Positions | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Contact Finish - Mating | Voltage Rating | Shell Size - Insert | Shell Finish | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automation Control Industrial Telecommunications | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | 3 A | Backshell | Screw | Threaded | Brass | 4 | Plug Male Pins | 85 °C | -40 C | Metal | Gold | 30 VDC | M8-4 | |||||
 TE Connectivity AMP Connectors | Automation Control Industrial Telecommunications | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | 3 A | Backshell | Screw | Threaded | Brass | Plug Male Pins | 85 °C | -40 C | Metal | Gold | 60 VDC | M8-3 | Nickel | Silver | 0.076 µm | 3 µin | Shielded | |
 TE Connectivity AMP Connectors | Automation Control Industrial Telecommunications | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | 3 A | Backshell | Screw | Threaded | Brass | Plug Male Pins | 85 °C | -40 C | Metal | Gold | 60 VDC | M8-3 | Nickel | Silver | 0.076 µm | 3 µin | ||
 TE Connectivity AMP Connectors | Automation Control Industrial Telecommunications | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | 3 A | Backshell | Screw | Threaded | Brass | 4 | Plug Male Pins | 85 °C | -40 C | Metal | Gold | 30 VDC | M8-4 | Nickel | Silver | 0.076 µm | 3 µin | Shielded |
