2007829 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

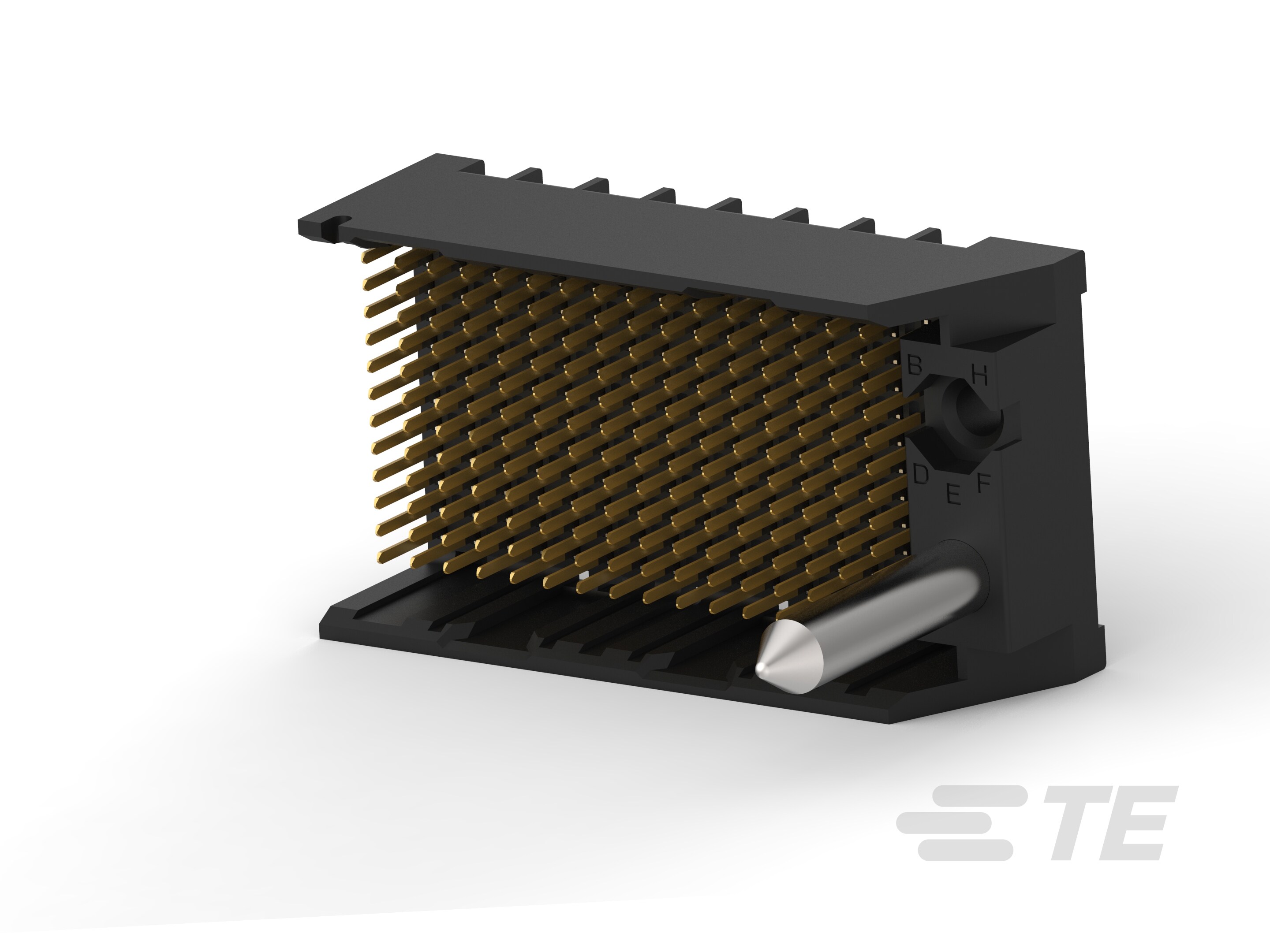

IMP100S,H,V4P16C,RG,OEW39,4.5
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Termination | Connector Type | Pitch | Pitch | Number of Positions Loaded | Connector Usage | Contact Finish | Mounting Type | Number of Columns | Color | Current Rating (Amps) | Features | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 85 °C | UL94 V-0 | 30 VAC | 30 Áin | 0.76 Ám | 192 | 12 | Press-Fit | Header Male Pins and Blades | 0.075 in | 1.91 mm | All | Daughtercard | Gold | Through Hole | 16 | Black | ||||
 TE Connectivity AMP Connectors | -55 C | 85 °C | UL94 V-0 | 29.9 VAC/DC | 30 Áin | 0.76 Ám | 192 | 12 | Press-Fit | Header Male Pins | 0.075 in | 1.9 mm | All | Backplane | Gold | Through Hole | 16 | Black | 0.75 A | Guide Pin | 64 | 128 |
