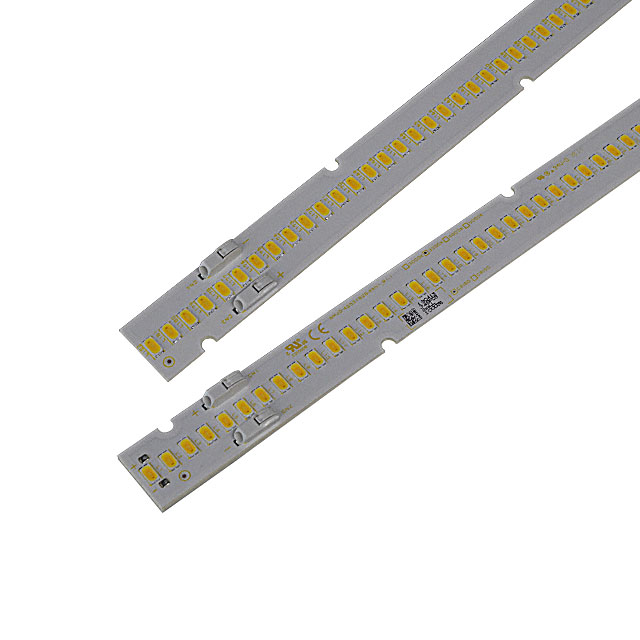

SMJD-4253182 Series
Manufacturer: Seoul Semiconductor Inc.
Beta
⌘K
LED MOD IND WARM WHT RECT 3500K
| Part | Temperature - Test | Voltage - Forward (Vf) (Typ) | Height [z] | CCT (K) | CCT (K) | Type | Size / Dimension [x] | Size / Dimension [y] | Lens Type | Current - Max [Max] | Current - Test | CRI (Color Rendering Index) | Color | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Seoul Semiconductor Inc. | 25 °C | 41.5 V | 5.5 mm | 3500 K | 3-Step MacAdam Ellipse | LED Module | 1120 mm | 20 mm | Flat | 1.82 A | 1.3 A | 80 | Warm White | 9450 lm | 175 lm/W | Rectangle |
 Seoul Semiconductor Inc. | 25 °C | 41.5 V | 5.5 mm | 3000 K | 3-Step MacAdam Ellipse | LED Module | 1120 mm | 20 mm | Flat | 1.82 A | 1.3 A | 80 | Warm White | 9450 lm | 175 lm/W | Linear Light Strip |
