PJ-084 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

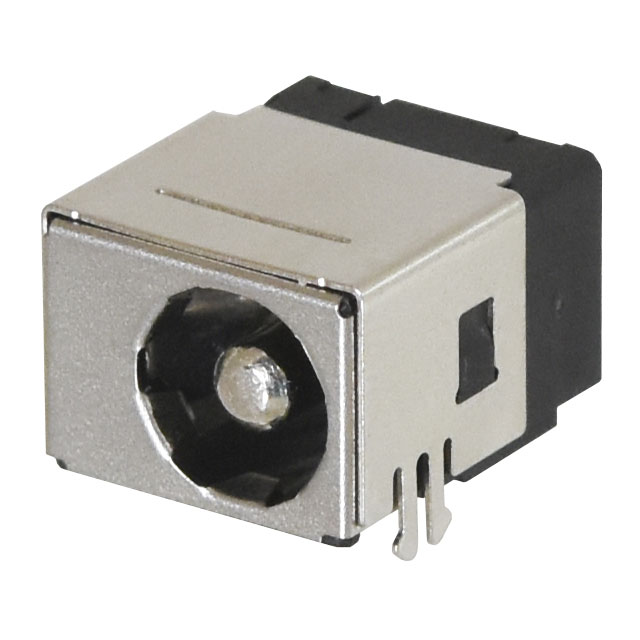

PWR JACK 2.5X5.9MM RT THROUGH HO
| Part | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Material Flammability Rating | Termination | Connector Type | Actual Diameter [diameter] | Features | Internal Switch(s) | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Mating Length/Depth | Mating Length/Depth | Gender | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Contact Material - Plating | Contact Material [custom] | Body Color | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 2 | 3 | Shielded | UL94 V-0 | Solder | Jack | 0.098 in 0.232 in 2.5 mm 5.9 mm | Board Guide Board Lock | Single Switch Normally Closed | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | 0.323 in | 8.2 mm | Male | 5 A | Right Angle Through Hole | 85 °C | -25 °C | 24 VDC | ||||
Same Sky (Formerly CUI Devices) | 2 | 3 | Shielded | UL94 V-0 | Solder | Jack | 0.098 in 0.232 in 2.5 mm 5.9 mm | Board Guide Board Lock | Single Switch Normally Closed | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | 0.323 in | 8.2 mm | Male | 5 A | Right Angle Through Hole | 85 °C | -25 °C | 24 VDC | Silver | Brass Copper Alloy | Black Silver | Polyamide (PA10T) Nylon 10T |
