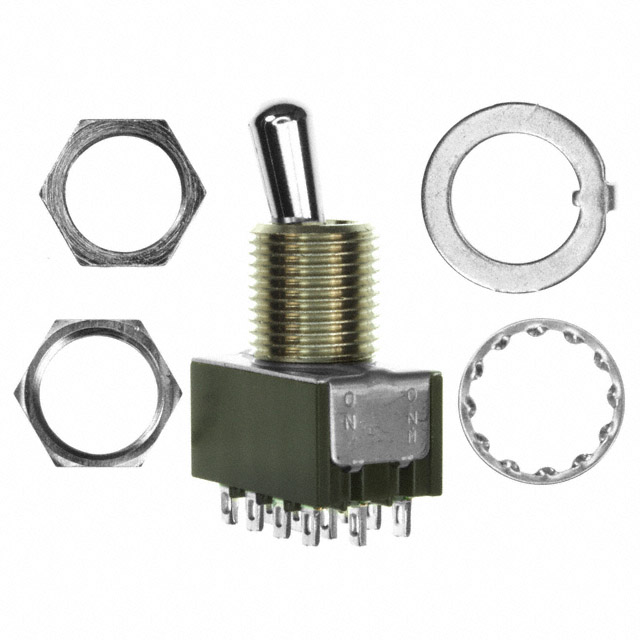

M2045BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Actuator Material | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Type | Mounting Type | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Illumination | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Actuator Length [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | On-Mom | 12.5 mm | Standard Round | Panel Mount | 30 V | Solder Lug | 3 A 6 A | Non-Illuminated | 125 V | 4PDT | 85 °C | -30 ░C | M12 x 1 | 11.5 mm | Epoxy Sealed Terminals |
