HS2P2F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

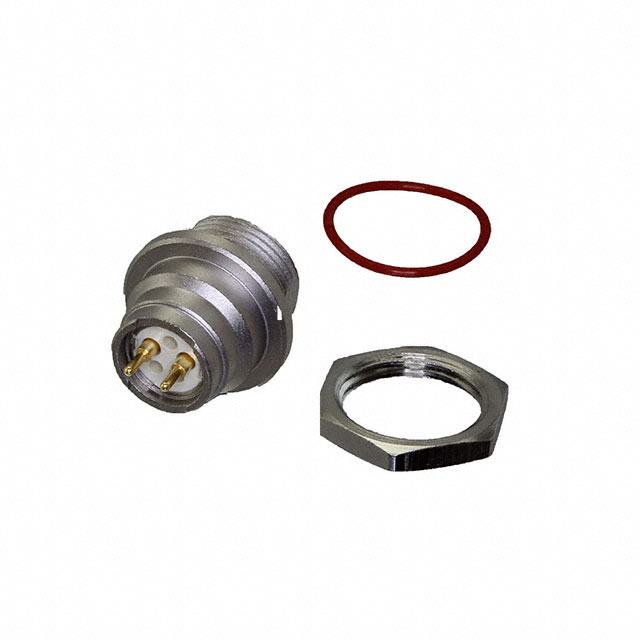

CONN RCPT FMALE 2POS GOLD SOLDER
| Part | Mounting Type | Termination | Shielding | Shell Finish | Orientation | Number of Positions | Voltage Rating | Ingress Protection | Fastening Type | Color | Mounting Feature | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Primary Material | Contact Finish - Mating | Shell Material | Connector Type | Applications | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Panel Mount Through Hole | Solder | Shielded | Electroless Nickel | Keyed | 2 | 125 VAC | IP66 IP67 IP68 | Push-Pull | Silver | Bulkhead - Front Side Nut | Copper Alloy | -40 C | 135 °C | Liquid Crystal Polymer (LCP) | Metal | Gold | Copper Alloy | Receptacle Female Sockets | Agriculture Audio General Medical Testing Equipment & Measurement | |
 SWITCHCRAFT/CONXALL | Panel Mount Through Hole | Solder | Shielded | Electroless Nickel | Keyed | 2 | 125 VAC | IP66 IP67 IP68 | Push-Pull | Silver | Bulkhead - Front Side Nut | Copper Alloy | -40 C | 135 °C | Liquid Crystal Polymer (LCP) | Metal | Gold | Copper Alloy | Receptacle Female Sockets | Agriculture Audio General Medical Testing Equipment & Measurement | |
 SWITCHCRAFT/CONXALL | Panel Mount | Crimp Solder Cup | Shielded | Electroless Nickel | Keyed | 2 | 125 VAC | IP66 IP67 IP68 | Push-Pull | Silver | Bulkhead - Rear Side Nut | Copper Alloy | -40 C | 135 °C | Liquid Crystal Polymer (LCP) | Metal | Gold | Copper Alloy | Receptacle Female Sockets | Agriculture Audio General Medical Testing Equipment & Measurement | UL94 HF-1 |
