IPP80P03 Series
Manufacturer: INFINEON
Beta
⌘K

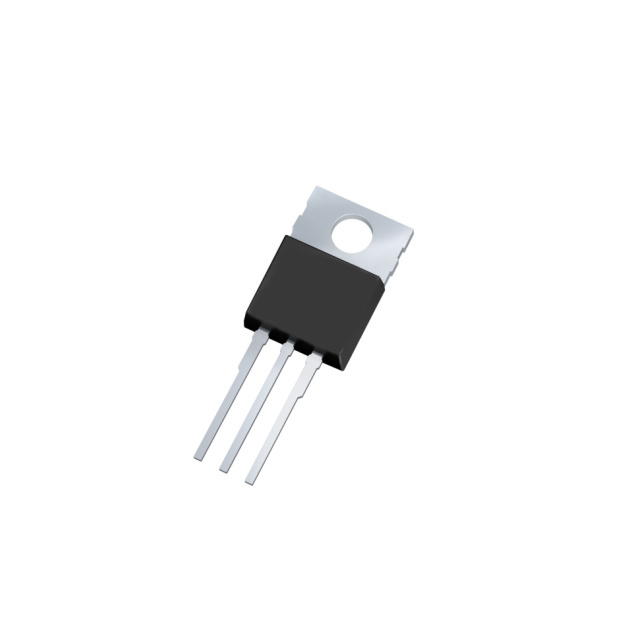

MOSFET P-CH 30V 80A TO220-3
| Part | Technology | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds | Vgs (Max) [Max] | Vgs (Max) [Min] | Mounting Type | Supplier Device Package | Package / Case | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Grade | FET Type | Qualification | Gate Charge (Qg) (Max) @ Vgs | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | MOSFET (Metal Oxide) | 30 V | 11300 pF | 5 V | -16 V | Through Hole | PG-TO220-3-1 | TO-220-3 | 2 V | 175 °C | -55 °C | 4.4 mOhm | 4.5 V 10 V | Automotive | P-Channel | AEC-Q101 | 160 nC | 137 W |
 INFINEON | MOSFET (Metal Oxide) | 30 V | 11300 pF | 5 V | -16 V | Through Hole | PG-TO220-3-1 | TO-220-3 | 2 V | 175 °C | -55 °C | 4.4 mOhm | Automotive | P-Channel | AEC-Q101 | 160 nC | 137 W |
