293D Series

Catalog

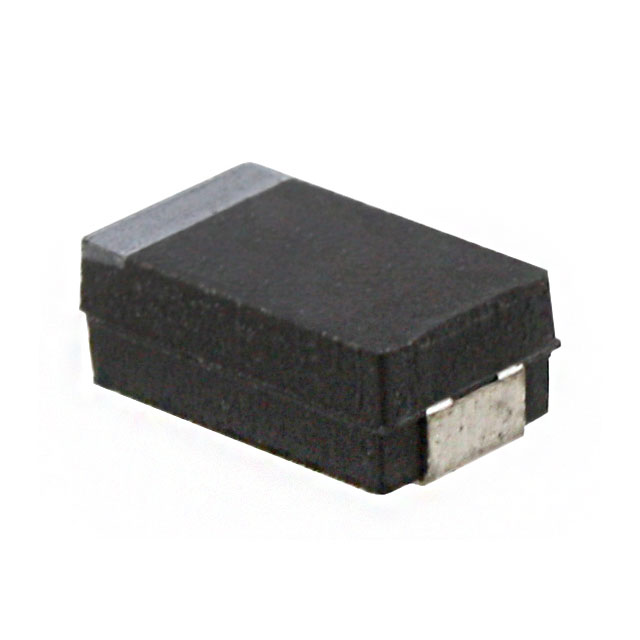

TANTALUM CAPACITORS - SOLID SMD MOLDED TANTALUM CHIP CAPACITORS

Part	Manufacturer Size Code	Size / Dimension Width	Size / Dimension Length	Type	Capacitance	Voltage - Rated	Mounting Type	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Features	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Package / Case	Package Diameter	Package Name
Vishay Dale 293D105X9020A2WE3
Vishay Dale 293D335X9004A2TE3	A	0.063 in	0.126 in	Molded	3.3 µF	4 V	Surface Mount	10 %	125 °C	-55 °C	General Purpose	7.6 Ohm	0.071 in	1206 (3216 Metric)
Vishay Dale 293D106X9050E8T	E	0.169 in	0.287 in	Molded	10 µF	50 V	Surface Mount	10 %	125 °C	-55 °C	General Purpose	800 mOhm	0.169 in	2917 (7343 Metric)
Vishay Dale 293D156X9035D8T
Vishay Dale 293D475X0016B2TE3	B	0.11 in	0.138 in	Molded	4.7 µF	16 V	Surface Mount	20 %	125 °C	-55 °C	General Purpose	2.9 Ohm	0.083 in	1411 (3528 Metric)	3528 mm	1411
Vishay Dale 293D106X9016C2TE3	C	0.126 in	0.236 in	Molded	10 µF	16 V	Surface Mount	10 %	125 °C	-55 °C	General Purpose	1.8 Ohm	0.11 in	2312 (6032 Metric)
Vishay Dale 293D227X9010E2WE3
Vishay Dale 293D225X0025A2WE3
Vishay Dale 293D227X06R3D2TE3	D	0.169 in	0.287 in	Molded	220 µF	6.3 V	Surface Mount	20 %	125 °C	-55 °C	General Purpose	600 mOhm	0.122 in	2917 (7343 Metric)
Vishay Dale 293D686X9004C8T
