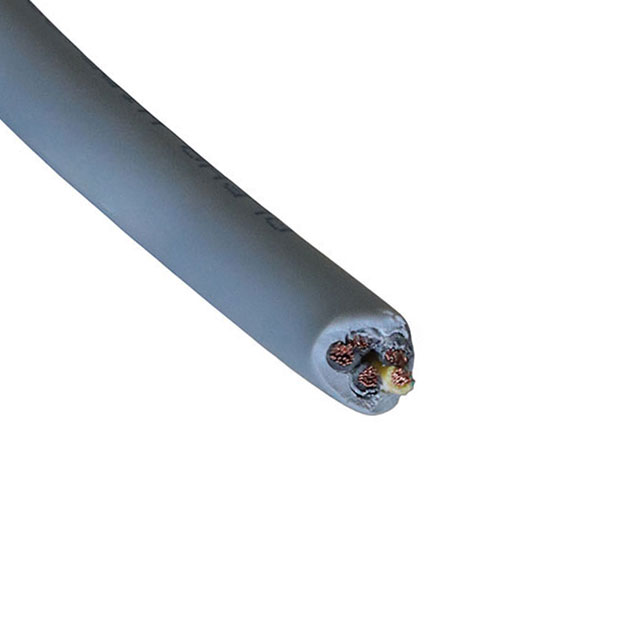

470057YY Series

Catalog

CABLE 5COND 19AWG GRAY 300M

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Spool Size	Spool Size	Conductor Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Features	Jacket Color	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length
ALPHA WIRE 470057YY GE432	-40 °C	80 C	10 m 30 m 984.3 ft	32.81 ft 98.43 ft	Poly-Vinyl Chloride (PVC)	0.267 in	6.78 mm	Poly-Vinyl Chloride (PVC)	984.3 ft	300 m	Copper Bare	Multi-Conductor	0.0303 in	0.77 mm	19 AWG	Chemical Resistant Oil Resistant UV Resistant	Gray	5	1 m	3.28 ft	0.007 in	30	300 V	Enter Number of Meters in Order Quantity	300 m

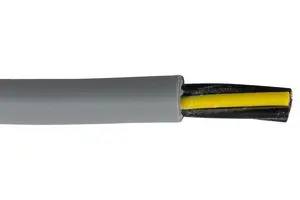

ALPHA WIRE 470057YY GE033	-40 °C	80 C	100 m	328.1 ft	Poly-Vinyl Chloride (PVC)	0.267 in	6.78 mm	Poly-Vinyl Chloride (PVC)			Copper Bare	Multi-Conductor	0.0303 in	0.77 mm	19 AWG	Chemical Resistant Oil Resistant UV Resistant	Gray	5			0.007 in	30	300 V
ALPHA WIRE 470057YY GE321	-40 °C	80 C	50 m	164 ft	Poly-Vinyl Chloride (PVC)	0.267 in	6.78 mm	Poly-Vinyl Chloride (PVC)			Copper Bare	Multi-Conductor	0.0303 in	0.77 mm	19 AWG	Chemical Resistant Oil Resistant UV Resistant	Gray	5			0.007 in	30	300 V
