74LVC1G86 Series

Catalog

IC GATE XOR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Grade	Qualification	Current - Quiescent (Max) [Max]	Current - Output High, Low [y]	Current - Output High, Low [x]	Mounting Type	Number of Inputs	Number of Circuits	Package / Case	Max Propagation Delay @ V, Max CL	Supplier Device Package	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Type	Supplier Device Package [y]	Supplier Device Package [x]

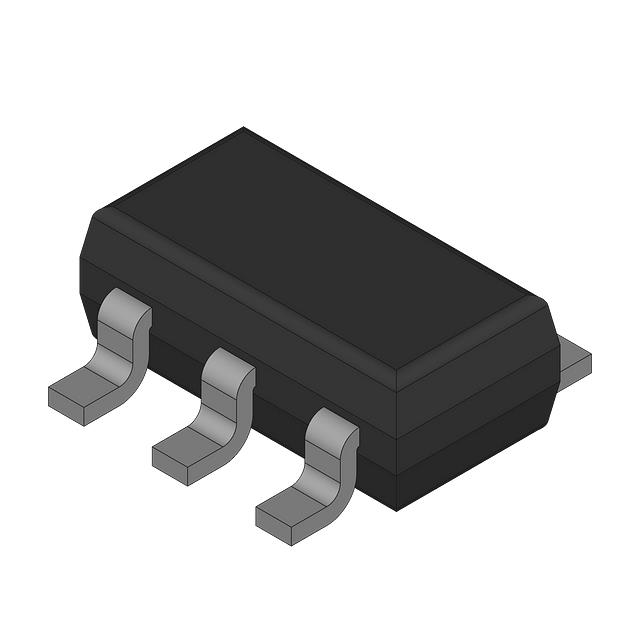

Freescale Semiconductor - NXP 74LVC1G86GV-Q100125	125 °C	-40 °C	0.8 V	0.7 V	Automotive	AEC-Q100	4 µA	32 mA	32 mA	Surface Mount	2	1	SC-74A SOT-753	5.5 ns	5-TSOP	1.7 V	2 V	5.5 V	1.65 V	XOR (Exclusive OR)
Freescale Semiconductor - NXP 74LVC1G86GM,132	125 °C	-40 °C	0.8 V	0.7 V			4 µA	32 mA	32 mA	Surface Mount	2	1	6-XFDFN	4 ns	6-XSON	1.7 V	2 V	5.5 V	1.65 V	XOR (Exclusive OR)	1	1.45
