845-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 26POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Material | Mounting Type | Number of Positions/Bay/Row | Card Type | Number of Rows | Contact Finish | Pitch | Pitch | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

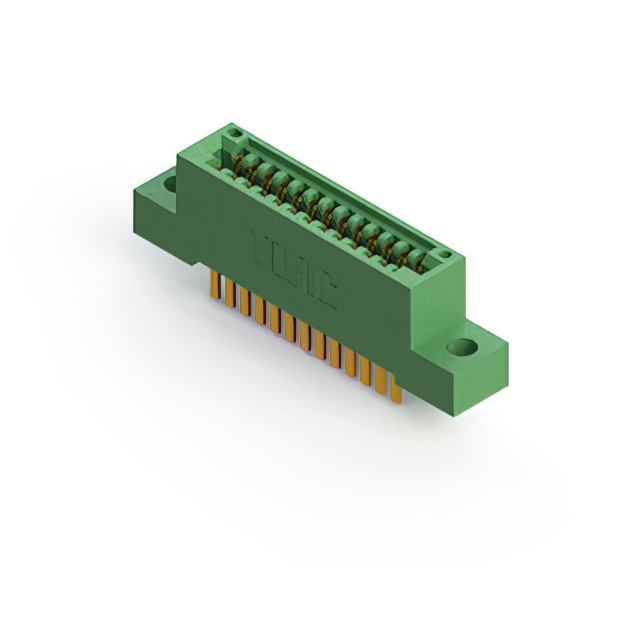

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 26 | Non Specified - Single Edge | 1 | Gold | 0.1 " | 2.54 mm | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Wire Wrap | Single | 0.25 Ám | 10 Áin | ||

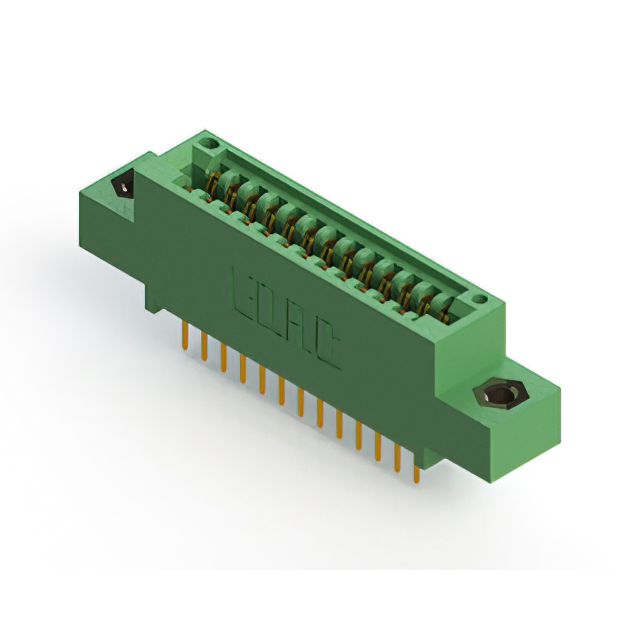

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | 0.156 " | 3.96 mm | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Dual | 0.25 Ám | 10 Áin | 2 | 2 | |||

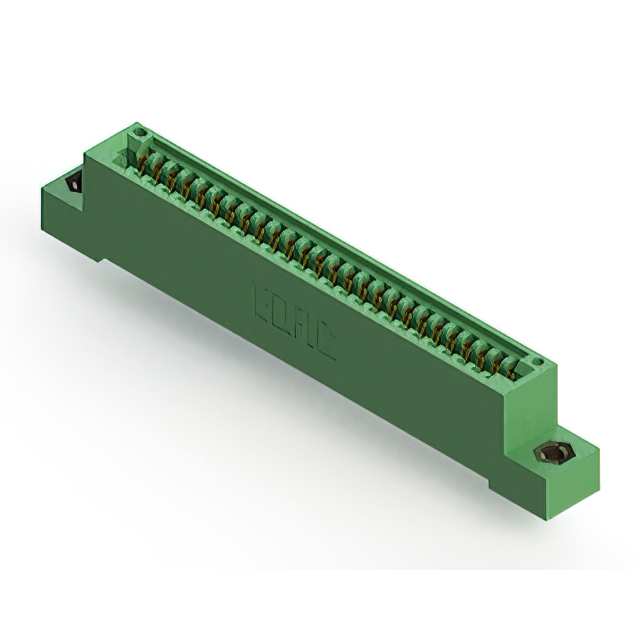

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Dual | 0.25 Ám | 10 Áin | 2 | 2 | ||||

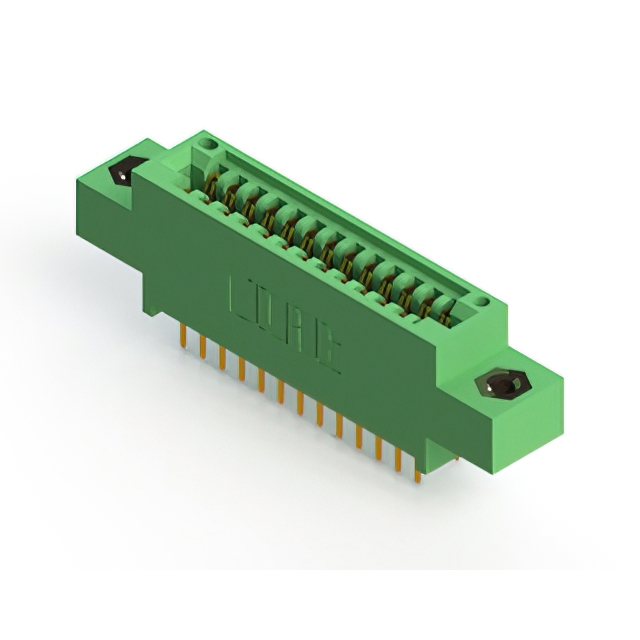

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Wire Wrap | Dual | 0.25 Ám | 10 Áin | 2 | 2 | ||

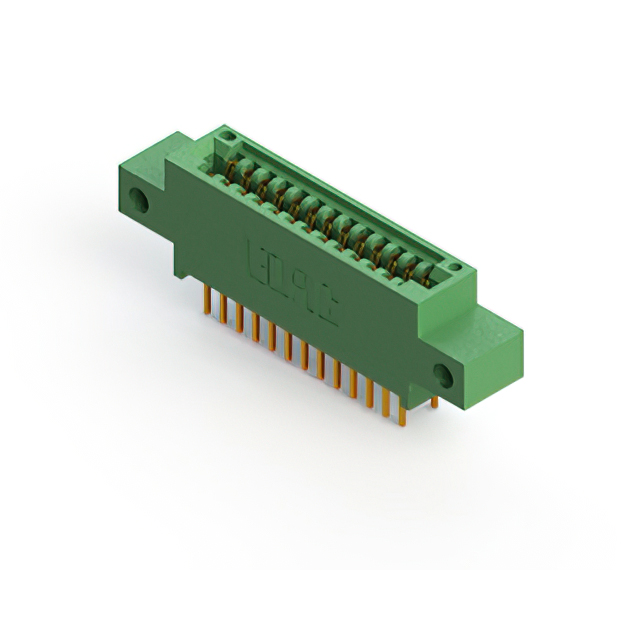

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Right Angle Through Hole | 26 | Non Specified - Single Edge | 1 | Gold | 0.1 " | 2.54 mm | Female | M3 Threaded Insert Top Mount Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Single | 0.25 Ám | 10 Áin | ||||

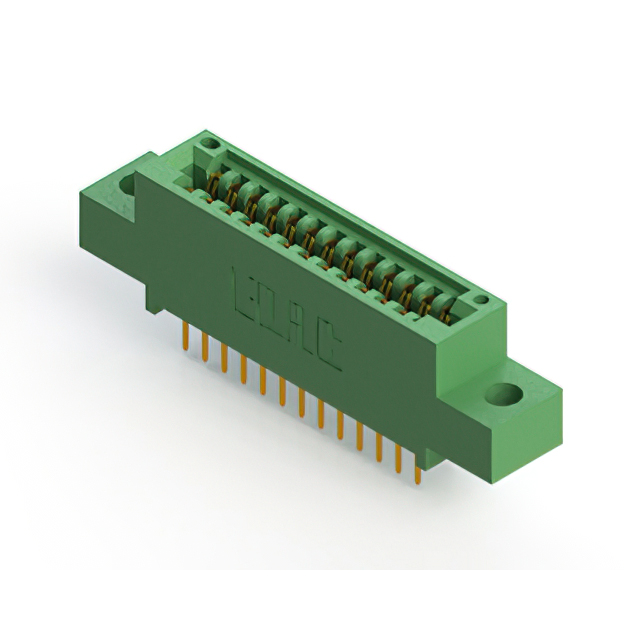

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | M3 Threaded Insert Top Mount Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder Eyelet(s) | Dual | 0.25 Ám | 10 Áin | 2 | 2 | ||||

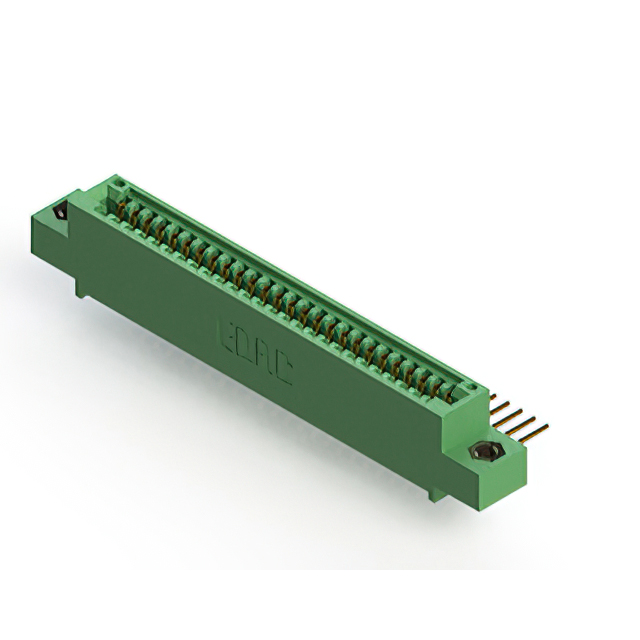

 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | M3 Threaded Insert Top Mount Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Dual | 0.25 Ám | 10 Áin | 2 | 2 | ||||

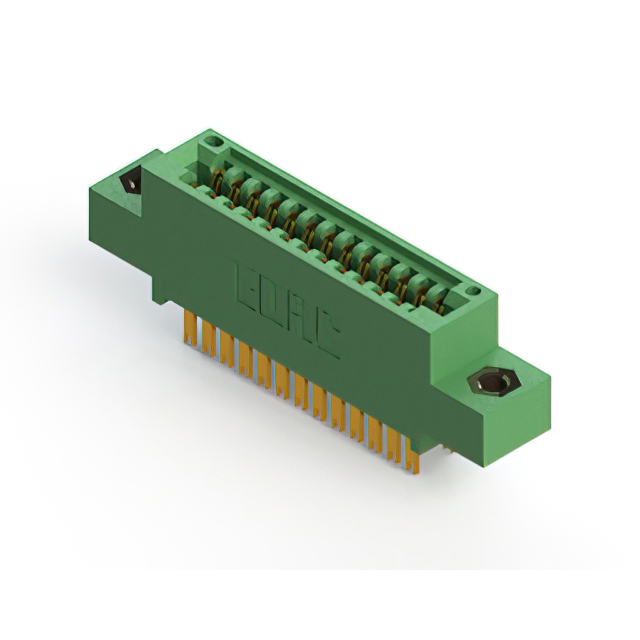

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 26 | Non Specified - Single Edge | 1 | Gold | 0.1 " | 2.54 mm | Female | Flush Mount M3 Threaded Insert Top Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Single | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | M3 Threaded Insert Top Mount Opening | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Wire Wrap | Dual | 0.25 Ám | 10 Áin | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Through Hole | 13 | Non Specified - Dual Edge | Gold | 0.1 " | 2.54 mm | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Green | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 26 | Solder | Dual | 0.25 Ám | 10 Áin | 2 | 2 |
