TCTL Series

Catalog

COMPRESSION CONNECTORS

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Finish	Contact Material	Insulation	Stud/Tab Size	Termination	Terminal Type	Length - Overall [x]	Length - Overall	Wire Gauge	Wire Gauge	Color	Terminal Style	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Diameter - Barrel ID [diameter]	Length - Overall [custom]	Length - Overall [custom]	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Energy & Utilities TCTL-250-1/2-U	15.24 mm	0.6 "	Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard	3.26 in	82.8 mm	250 kcmil	250 kcmil	Green	Single Stud Hole	1.09 in	27.69 mm	Free Hanging (In-Line)
TE Energy & Utilities TCTL-500-5/8-U	20.32 mm	0.8 in	Tin	Copper	Non-Insulated	0.625 Stud	Barrel Crimp	Standard	4.4 in		500 MCM		Black	Two Stud Holes			Free Hanging (In-Line)	1.54 in	39.12 mm	111.76 mm
TE Energy & Utilities TCTL-500-1/2-U	20.32 mm	0.8 in	Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard	4.4 in		500 MCM		Black	Two Stud Holes			Free Hanging (In-Line)	1.54 in	39.12 mm	111.76 mm
TE Energy & Utilities TCTL2-750-1/2-IV-U	1.03 in		Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard	6.87 in		750 MCM	750 MCM	Black	Two Stud Holes	1.89 in	48.01 mm	Free Hanging (In-Line)			174.5 mm	26.16 mm
TE Energy & Utilities TCTL-600-5/8-U	22.86 mm	0.9 in	Tin	Copper	Non-Insulated	0.625 Stud	Barrel Crimp	Standard	4.772 in		600 MCM (kcmil)		Black	Two Stud Holes	1.71 "	43.43 mm	Free Hanging (In-Line)			121.2 mm
TE Energy & Utilities TCTL-1000-5/8-U	30.48 mm	1.2 in	Tin	Copper	Non-Insulated	0.625 Stud	Barrel Crimp	Standard	5.4 in		1000 MCM	1000 kcmil		Two Stud Holes	2.19 in	55.63 mm	Free Hanging (In-Line)			137.16 mm
TE Energy & Utilities TCTL-4/0-1/2-U	15.24 mm	0.6 "	Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard	3.23 in		4 aught AWG		Green	Single Stud Hole	1 in	25.4 mm	Free Hanging (In-Line)			82.04 mm

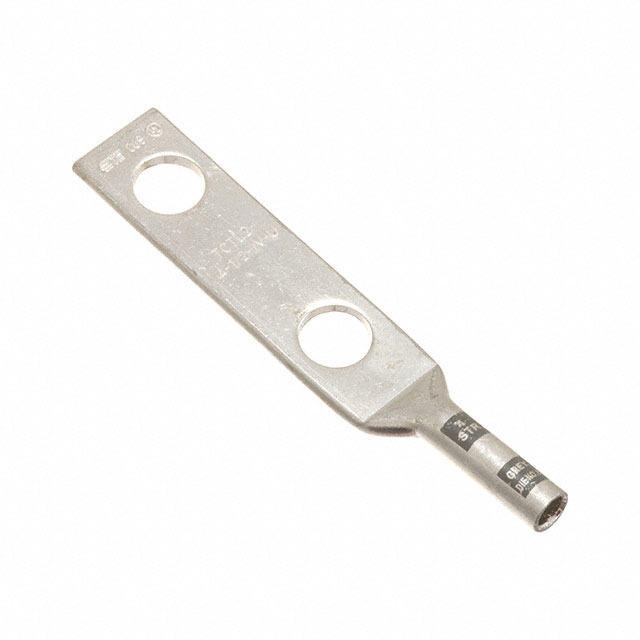

TE Energy & Utilities TCTL2-4-1/2-IV-U	6.35 mm	0.25 in	Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard			4 AWG		Gray	Two Stud Holes			Free Hanging (In-Line)					113.03 mm	4.45 "	20.57 mm	0.81 "
TE Energy & Utilities TCTL-1-5/16-U	10.16 mm	0.4 in	Tin	Copper	Non-Insulated	0.3125 Stud	Barrel Crimp	Standard	3.1 in	78.74 mm	1 AWG		Gray	Single Stud Hole	0.68 "		Free Hanging (In-Line)		17.27 mm
TE Energy & Utilities TCTL2-600-1/2-IV-U	23.37 mm	0.92 in	Tin	Copper	Non-Insulated	0.5 Stud	Barrel Crimp	Standard	6.59 in 167.39 mm		600 MCM (kcmil)		Green	Two Stud Holes	1.71 "	43.43 mm	Free Hanging (In-Line)
