11SX1 Series

Catalog

MICROSWITCH, MEDICAL, SUBMINIATURE, LEAF LEVER, SPDT, SOLDER, 5 A, 28 VDC

Part	Voltage Rating - DC	Overtravel [custom]	Overtravel [custom]	Release Force	Mechanical Life	Termination Style	Voltage Rating - AC	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Operating Force	Current Rating (Amps)	Mounting Type	Circuit	Differential Travel	Differential Travel	Switch Function	Operating Position	Operating Position	Termination Style

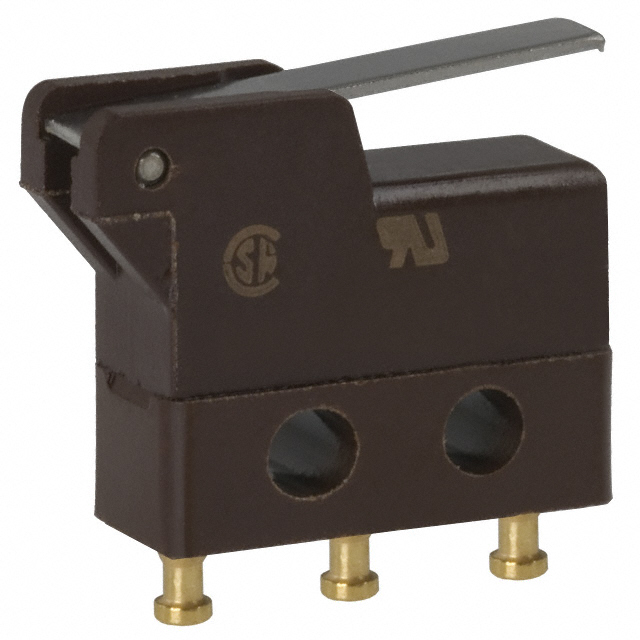

Honeywell Sensing and Productivity Solutions 311SX1-T	28 V	0.014 in	0.35 mm	9.177 gf	10000000 Cycles	Solder Turret	125 V	0.065 in	1.65 mm	-55 C	125 °C	Lever Straight	50 gf	5 A	Chassis Mount	SPDT	0.5 mm	0.02 in	On-Mom	8.43 mm	0.332 in

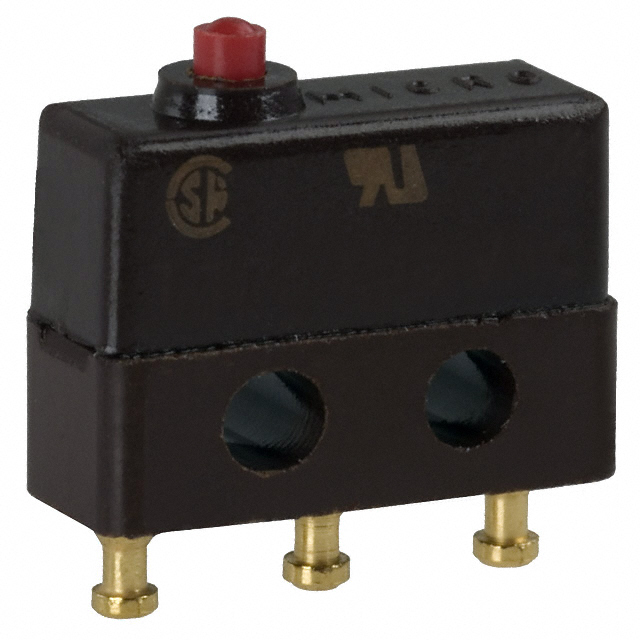

Honeywell Sensing and Productivity Solutions 11SX1-T	28 V	0.004 in	0.1 mm	21 gf	10000000 Cycles	Solder Turret	250 V	0.02 in	0.5 mm	-55 C	125 °C	Round (Pin Plunger)	99 gf	3 A	Chassis Mount	SPDT	0.025 mm	0.001 in	On-Mom	8.13 mm	0.32 "

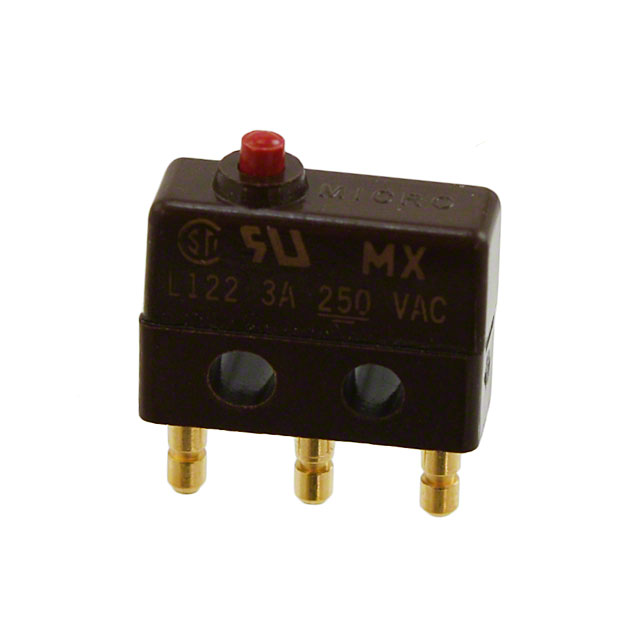

Honeywell Sensing and Productivity Solutions 11SX1-H58	28 V	0.004 in	0.1 mm	21 gf	10000000 Cycles	Quick Connect	250 V	0.02 in	0.5 mm	-55 C	125 °C	Round (Pin Plunger)	99 gf	3 A	Chassis Mount	SPDT	0.025 mm	0.001 in	On-Mom	8.13 mm	0.32 "	0.058 in
