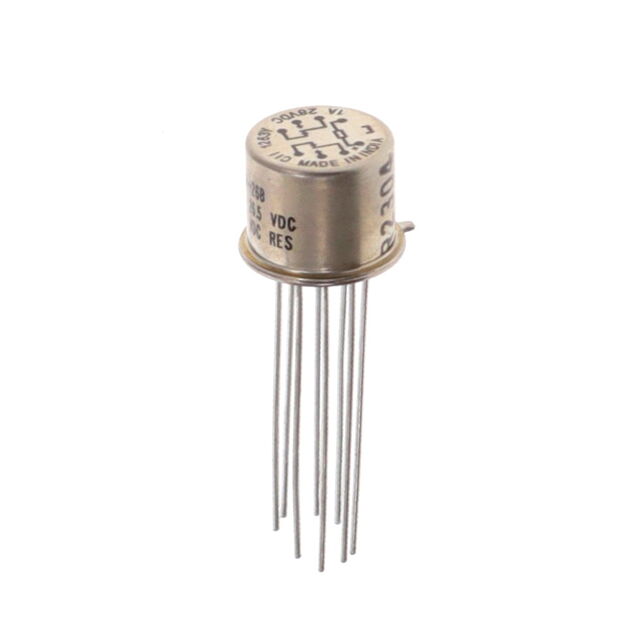

HM-26 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 26.5V
| Part | Coil Current | Coil Voltage | Contact Material | Coil Resistance | Contact Form | Release Time | Must Operate Voltage | Mounting Type | Seal Rating | Termination Style | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Contact Rating (Current) | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 17 mA | 26.5 VDC | Gold (Au) Silver Palladium (AgPd) | 1560 Ohms | DPDT (2 Form C) | 3 ms | 17 VDC | Through Hole | Sealed - Hermetically | PC Pin | Non Latching | 85 °C | -55 °C | 4 ms | 1 A | General Purpose |
