ESM020W Series

Catalog

LED DRIVER CC AC/DC 28-42V 350MA

Part	Weight [custom]	Weight [custom]	Mounting Type	Voltage - Input (Min) [Min]	Termination Style	Type	Current - Output (Max) [Max]	Topology	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Dimming	Power (Watts)	Efficiency	Approval Agency	Features	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Outputs	Operating Temperature

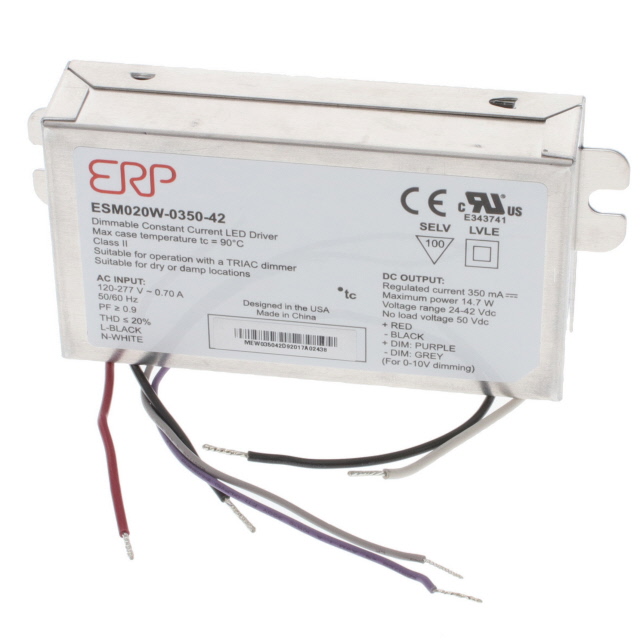

ERP Power, LLC ESM020W-0350-42	252 g	0.556 lb	Chassis Mount	120 VAC	Wire Leads	Constant Current	350 mA	AC DC Converter	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	277 VAC	ELV TRIAC	15 W	87 %	CB CE cRUcs cUL FC UL	OCP OTP SCP	42 V	28 V	-30 ░C	90 °C	IP20 NEMA 410	1
ERP Power, LLC ESM020W-1000-14	252 g	0.556 lb	Chassis Mount	120 VAC	Wire Leads	Constant Current	1 A	AC DC Converter	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	277 VAC	ELV TRIAC	14 W	87 %	CB CE cRUcs cUL FC UL	OCP OTP SCP	14 V	8 V	-30 ░C	90 °C	IP20 IP64 NEMA 410	1
ERP Power, LLC ESM020W-0280-42	252 g	0.556 lb	Chassis Mount	120 VAC	Wire Leads	Constant Current	280 mA	AC DC Converter	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	277 VAC	ELV TRIAC	12 W	87 %	CB CE cRUcs cUL FC UL	OCP OTP SCP	42 V	28 V	-30 ░C	90 °C	IP20 NEMA 410	1
ERP Power, LLC ESM020W-0350-42-Z1			Chassis Mount	120 VAC	Wire Leads	Constant Current	350 mA	AC DC Converter	60.2 mm	106.4 mm	2.37 in	25.1 mm	4.19 in	0.99 "	277 VAC	Analog ELV TRIAC	15 W	87 %		OCP OTP SCP	42 V	24 V			IP20	1	194 °F
ERP Power, LLC ESM020W-0440-34	252 g	0.556 lb	Chassis Mount	120 VAC	Wire Leads	Constant Current	440 mA	AC DC Converter	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	277 VAC	ELV TRIAC	15 W	87 %	CB CE cRUcs cUL FC UL	OCP OTP SCP	34 V	19 V	-30 ░C	90 °C	IP20 NEMA 410	1
ERP Power, LLC ESM020W-0400-42			Chassis Mount	120 VAC	Wire Leads	Constant Current	440 mA	AC DC Converter	60.2 mm	106.4 mm	2.37 in	25.1 mm	4.19 in	0.99 "	277 VAC	ELV TRIAC	17 W	87 %	CB CE cRUcs FC	OCP OTP SCP	42 V	28 V			IP20	1
ERP Power, LLC ESM020W-0440-25	252 g	0.556 lb	Chassis Mount	120 VAC	Wire Leads	Constant Current	440 mA	AC DC Converter	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	277 VAC	ELV TRIAC	11 W	87 %	CB CE cRUcs cUL FC UL	OCP OTP SCP	25 V	19 V	-30 ░C	90 °C	IP20 IP64 NEMA 410	1
