SST41 Series

Catalog

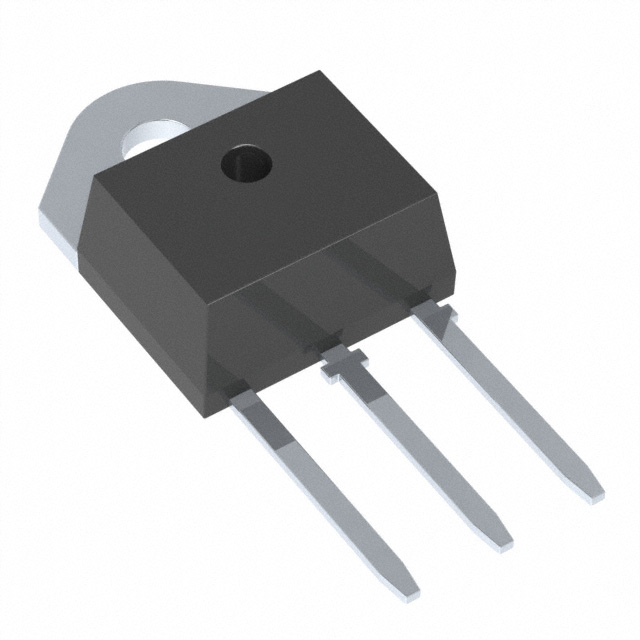

TRIAC 600V 40A TO3P

Part	Triac Type	Current - On State (It (RMS)) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Voltage - Gate Trigger (Vgt) (Max)	Configuration	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Supplier Device Package
SMC Diode Solutions SST41Z-600B	Standard	40 A	-40 C	125 °C	SC-65-3 TO-3P-3	Through Hole	1.3 V	Single	70 mA	600 V	400 A	80 mA	TO-3P Insulated
SMC Diode Solutions SST41Z-800B	Standard	40 A	-40 C	125 °C	SC-65-3 TO-3P-3	Through Hole	1.3 V	Single	70 mA	800 V	400 A	80 mA	TO-3P Insulated
SMC Diode Solutions SST41Z-600BW	Standard	40 A	-40 C	125 °C	SC-65-3 TO-3P-3	Through Hole	1.3 V	Single	70 mA	600 V	400 A	80 mA	TO-3P Insulated
