R19242 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

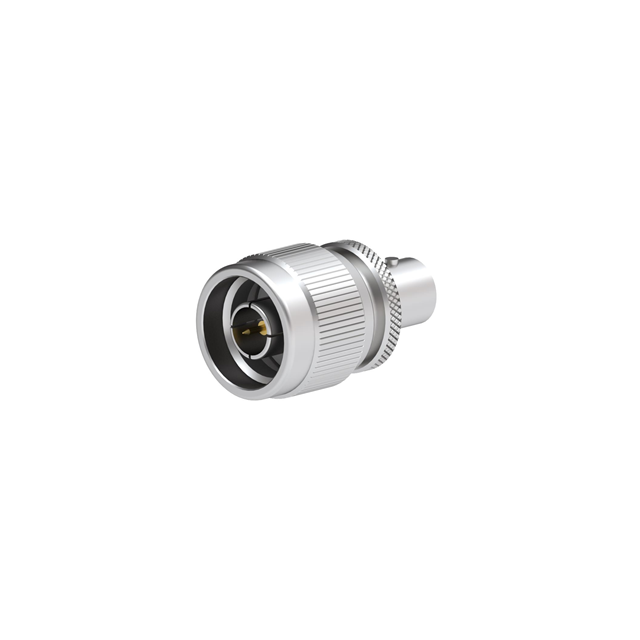

BNC FEMALE - N MALE ADAPTER
| Part | Dielectric Material | Center Contact Material | Mating Cycles | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Style | Convert To (Adapter End) | Adapter Type | Impedance | Convert From (Adapter End) | Conversion Type | Mounting Type | Fastening Type | Fastening Type | Adapter Series | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | 500 | Nickel | Brass | 155 C | -55 C | 1 GHz | Straight | N Plug Male Pin | Plug to Jack | 75 Ohms | BNC Jack Female Socket | Between Series | Free Hanging (In-Line) | Threaded | Bayonet Lock | BNC to N | Gold |
