ADUM5211 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

DUAL-CHANNEL ISOLATORS WITH INTEGRATED DC-TO-DC CONVERTER (1/1 CHANNEL DIRECTIONALITY)

Part	Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Channel Type	Package / Case	Package / Case [y]	Package / Case [x]	Propagation Delay tpLH / tpHL (Max) [Max]	Data Rate	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Technology	Inputs - Side 1/Side 2	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Primary Attributes [custom]	Contents	Utilized IC / Part	Function
Analog Devices Inc./Maxim Integrated ADUM5211ARSZ	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in	50 ns	1 Mbps	20-SSOP	10 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V
Analog Devices Inc./Maxim Integrated ADUM5211CRSZ-RL7	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in		100 Mbps	20-SSOP	2 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V	24 ns	24 ns

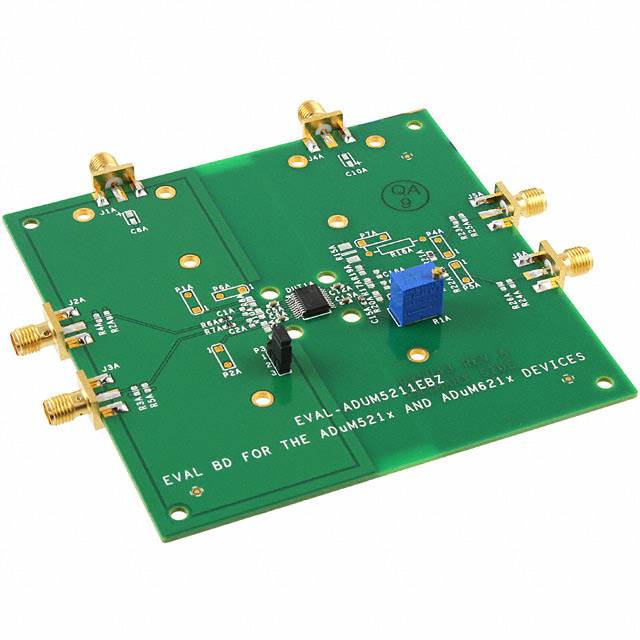

Analog Devices Inc./Maxim Integrated EVAL-ADUM5211EBZ	Interface																							2-Channel (Dual)	Board(s)	ADuM5211	Digital Isolator
Analog Devices Inc./Maxim Integrated ADUM5211BRSZ	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in		25 MBd	20-SSOP	3 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V	35 ns	35 ns
Analog Devices Inc./Maxim Integrated ADUM5211BRSZ-RL7	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in		25 MBd	20-SSOP	3 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V	35 ns	35 ns
Analog Devices Inc./Maxim Integrated ADUM5211ARSZ-RL7	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in	50 ns	1 Mbps	20-SSOP	10 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V
Analog Devices Inc./Maxim Integrated ADUM5211CRSZ	General Purpose	2.5 ns	2.5 ns	Surface Mount	2	25 kV/µs	Unidirectional	20-SSOP	5.3 mm	0.209 in		100 Mbps	20-SSOP	2 ns	Magnetic Coupling	1	2500 Vrms	-40 C	105 ░C	5.5 V	2.7 V	24 ns	24 ns
