2019-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

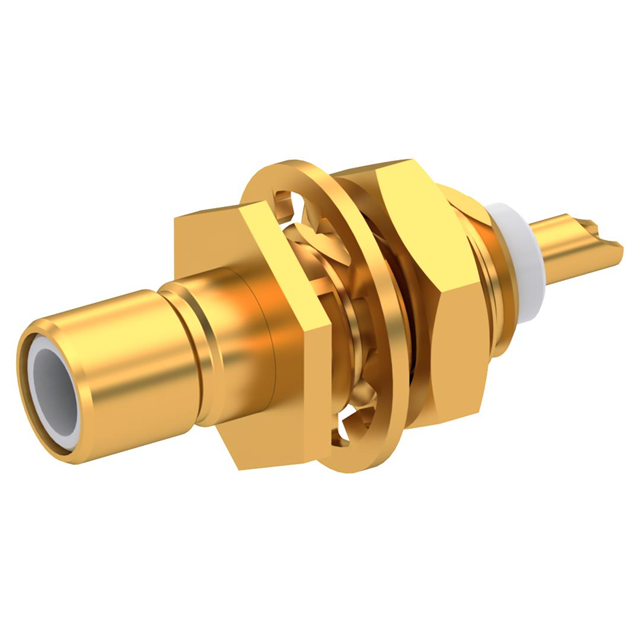

SMB M STR BHD SP
| Part | Mating Cycles | Center Contact Plating | Includes | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mounting Feature | Connector Type | Contact Termination | Center Contact Material | Frequency - Max [Max] | Number of Ports | Fastening Type | Connector Style | Mounting Type | Impedance | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Bulkhead - Rear Side Nut | Jack Male Pin | Solder Cup | Brass | 4 GHz | 1 | Snap-On | SMB | Panel Mount | 50 Ohms | Solder | Gold |
