AWVC Series

Catalog

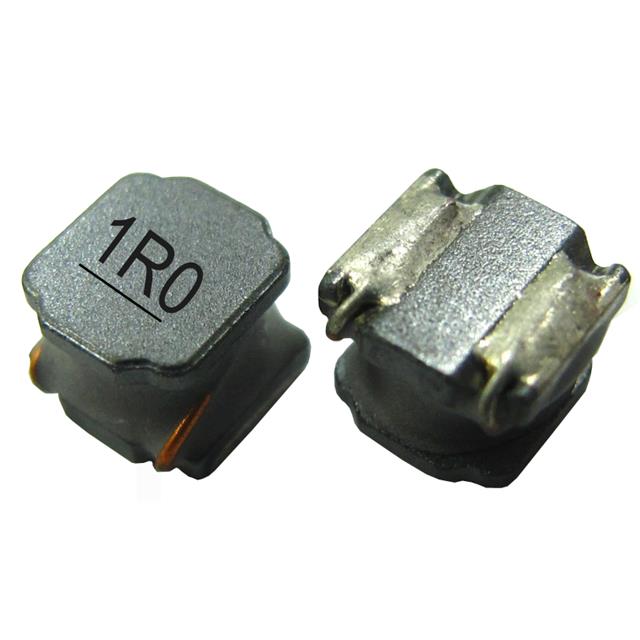

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPE - AUTOMATIC ASSEMBLY

Part	Supplier Device Package	DC Resistance (DCR) [Max]	Shielding	Current Rating (Amps)	Mounting Type	Material - Core	Package / Case	Inductance	Tolerance	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Supplier Device Package	DC Resistance (DCR)
Pulse Electronics AWVC005050401R0T00	2020	12 mOhm	Shielded	5.3 A	Surface Mount	Ferrite	2020 (5050 Metric)	1 µH	30 %	AEC-Q200	4.2 mm	0.165 "	7.9 A	125 °C	-40 C	0.197 in	0.197 "	5 mm	5 mm	100 kHz
Pulse Electronics AWVC00201612100T00	0806	580 mOhm	Shielded	0.52 A	Surface Mount	Ferrite	0806 (2016 Metric)	10 µH	30 %	AEC-Q200			550 mA	125 °C	-40 C	0.079 in	0.063 "	1.6 mm	2 mm	1 MHz	1.25 mm	0.049 in
Pulse Electronics AWVC00404018220T00	1616	335 mOhm	Shielded		Surface Mount	Ferrite	1616 (4040 Metric)	22 µH	30 %	AEC-Q200			810 mA	125 °C	-40 C	0.157 in	0.157 "	4 mm	4 mm	100 kHz	1.9 mm	0.075 "
Pulse Electronics AWVC002016122R2M00	0806	159 mOhm	Shielded	1.2 A	Surface Mount	Ferrite	0806 (2016 Metric)	2.2 µH	20 %	AEC-Q200			1.2 A	125 °C	-40 C	0.079 in	0.063 "	1.6 mm	2 mm	1 MHz	1.25 mm	0.049 in
Pulse Electronics AWVC002016102R2M00	0806	190 mOhm	Shielded	1.1 A	Surface Mount	Ferrite	0806 (2016 Metric)	2.2 µH	20 %	AEC-Q200			1.1 A	125 °C	-40 C	0.079 in	0.063 "	1.6 mm	2 mm	1 MHz	1 mm	0.039 in
Pulse Electronics AWVC00606045150T00			Shielded	1.9 A	Surface Mount	Ferrite	2424 (6060 Metric)	15 µH	30 %	AEC-Q200			3.4 A	125 °C	-40 C	0.236 in	0.236 "	6 mm	6 mm	100 kHz	4.7 mm	0.185 "	90 mOhm	2424
Pulse Electronics AWVC002016101R0T00	0806		Shielded	1.6 A	Surface Mount	Ferrite	0806 (2016 Metric)	1 µH	30 %	AEC-Q200			1.6 A	125 °C	-40 C	0.079 in	0.063 "	1.6 mm	2 mm	1 MHz	1 mm	0.039 in			95 mOhm
Pulse Electronics AWVC004040186R8M00	1616		Shielded	1.2 A	Surface Mount	Ferrite	1616 (4040 Metric)	6.8 µH	20 %	AEC-Q200			1.3 A	125 °C	-40 C	0.157 in	0.157 "	4 mm	4 mm	100 kHz	1.9 mm	0.075 "	105 mOhm
Pulse Electronics AWVC002016123R3T00	0806	220 mOhm	Shielded	950 mA	Surface Mount	Ferrite	0806 (2016 Metric)	3.3 µH	30 %	AEC-Q200			990 mA	125 °C	-40 C	0.079 in	0.063 "	1.6 mm	2 mm	1 MHz	1.25 mm	0.049 in
Pulse Electronics AWVC006060452R2M00			Shielded	4.6 A	Surface Mount	Ferrite	2424 (6060 Metric)	2.2 µH	20 %	AEC-Q200			8.5 A	125 °C	-40 C	0.236 in	0.236 "	6 mm	6 mm	100 kHz	4.7 mm	0.185 "	18 mOhm	2424
