S6SBP201 Series
Manufacturer: INFINEON
Beta
⌘K

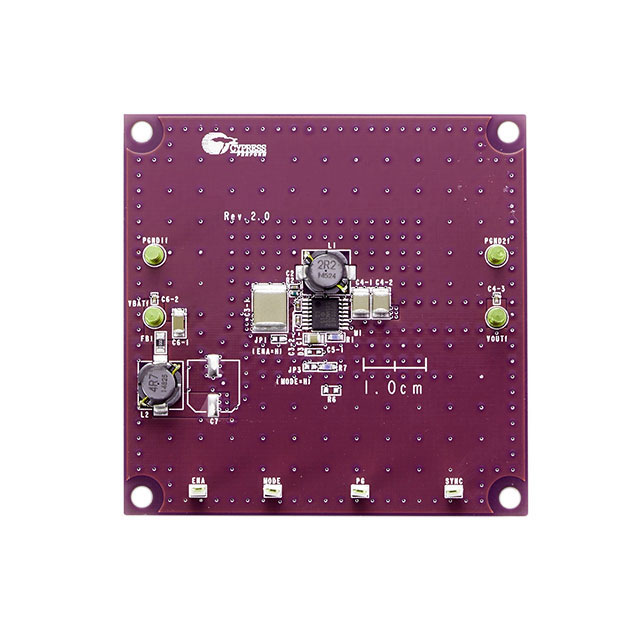

S6SBP201A1AVA1001, S6SBP202A1FVA1001 AND S6SBP203A8FVA1001 ARE THE EVALUATION KIT FOR PRIMARY POWER BLOCK OF AUTOMOTIVE. THESE BOARDS IMPLEMENT POWER MANAGEMENT IC S6BP201A, S6BP202A, S6BP203A EACH. IT IS NECESSARY TO PREPARE DC POWER SUPPLY.
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Contents | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Current - Output | Voltage - Output | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | S6BP201A | 42 V | 2.5 V | DC/DC Step Up or Down | 1 A | 5 V | Buck-Boost |
